Re: WIP: Procube

Post by iggunr » Tue Apr 22, 2014 5:29 pm

marcus9199 wrote:Did you use a CNC and auto cad to cut the acrylic.
yes, a friend of mine did it tho.
brooksyx
Posts: 16
Joined: Mon Apr 21, 2014 2:52 pm

Re: WIP: Procube

Post by brooksyx » Tue Apr 22, 2014 9:35 pm

This is an awesome mod. Can't wait to see more pics.
alcaina7
Posts: 3
Joined: Sun Sep 22, 2013 1:10 pm

Re: WIP: Procube

Post by alcaina7 » Thu Apr 24, 2014 8:40 pm

Slot-in drive? How can you do that?
User avatar
badsector
Posts: 193
Joined: Tue Aug 20, 2013 12:42 pm
Location: Berlin

Re: WIP: Procube

Post by badsector » Thu Apr 24, 2014 9:47 pm

By using a WKF/WASP with a Wii DVD drive, for example.
User avatar
iggunr
Posts: 84
Joined: Wed Jul 27, 2011 3:33 pm
Location: mx
Contact:

Re: WIP: Procube

Post by iggunr » Sat Apr 26, 2014 6:29 pm

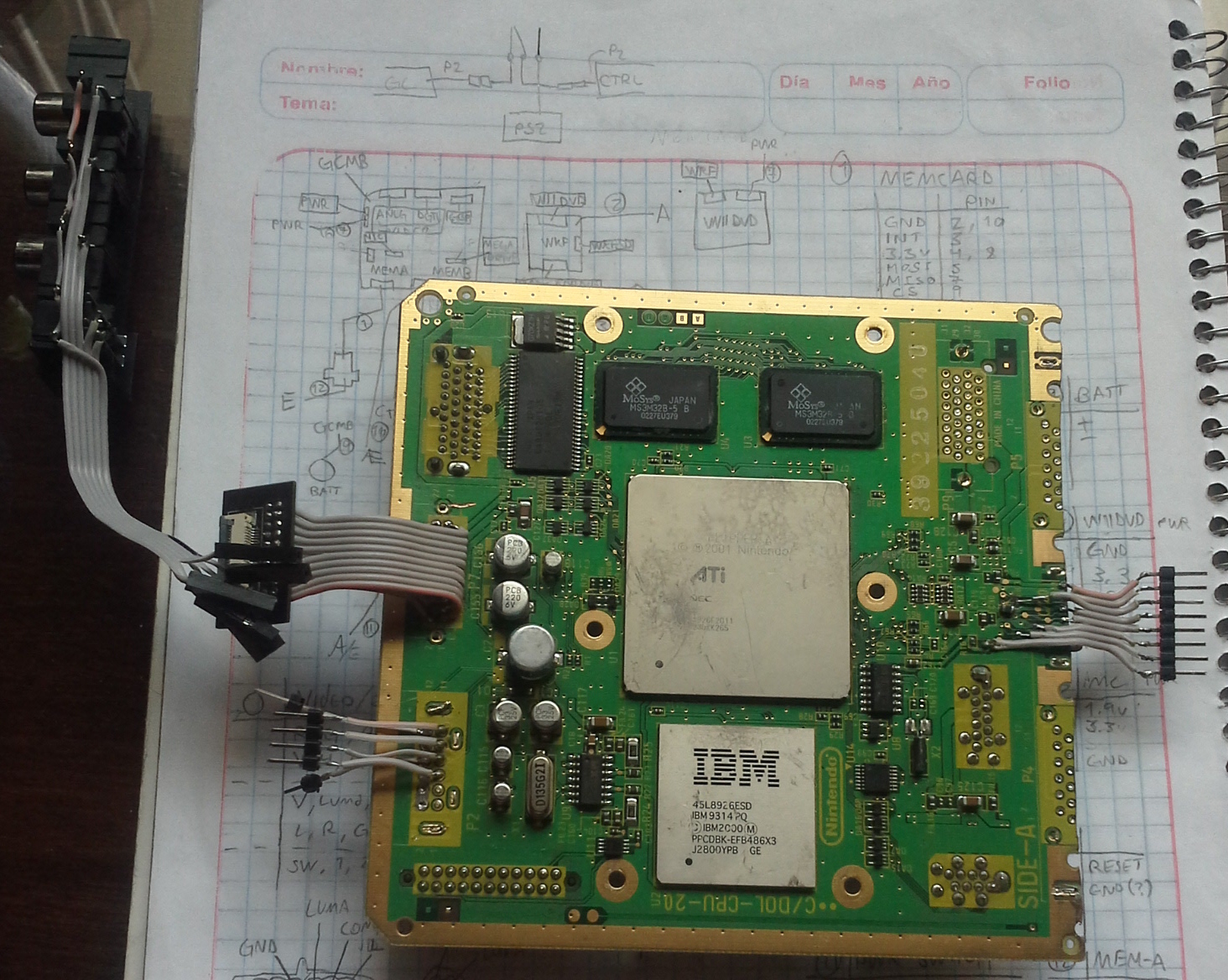

Just a little update.
Analog output, mega3 and controller board are all tested and working fine.
Next step: WKF

Attachments
(629.41 KiB) Not downloaded yet
User avatar
Streetwalker
Posts: 1447
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: WIP: Procube

Post by Streetwalker » Sun Apr 27, 2014 8:55 am

Why not solder the Mega3 directly ?
User avatar
iggunr
Posts: 84
Joined: Wed Jul 27, 2011 3:33 pm
Location: mx
Contact:

Re: WIP: Procube

Post by iggunr » Sun Apr 27, 2014 2:34 pm

Streetwalker wrote:Why not solder the Mega3 directly ?
Space constraints, I also don't want to risk it, especially since I already blown one motherboard aleady.
User avatar
iggunr
Posts: 84
Joined: Wed Jul 27, 2011 3:33 pm
Location: mx
Contact:

Re: WIP: Procube

Post by iggunr » Fri May 16, 2014 4:53 pm

Just a quick update

http://youtu.be/f2e28QJZ10M
User avatar
Streetwalker
Posts: 1447
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: WIP: Procube

Post by Streetwalker » Fri May 16, 2014 5:44 pm

Nice. :)
User avatar
emu_kidid
Site Admin
Posts: 4293
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: WIP: Procube

Post by emu_kidid » Sat May 17, 2014 2:15 am

Very nice, can't wait to see it all together :D
User avatar
iggunr
Posts: 84
Joined: Wed Jul 27, 2011 3:33 pm
Location: mx
Contact:

Re: WIP: Procube

Post by iggunr » Fri Jun 27, 2014 4:36 pm

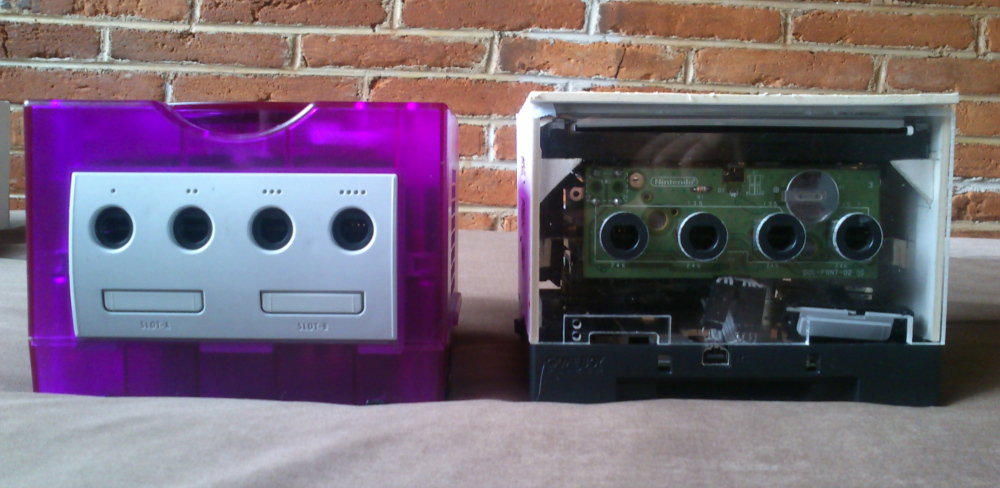

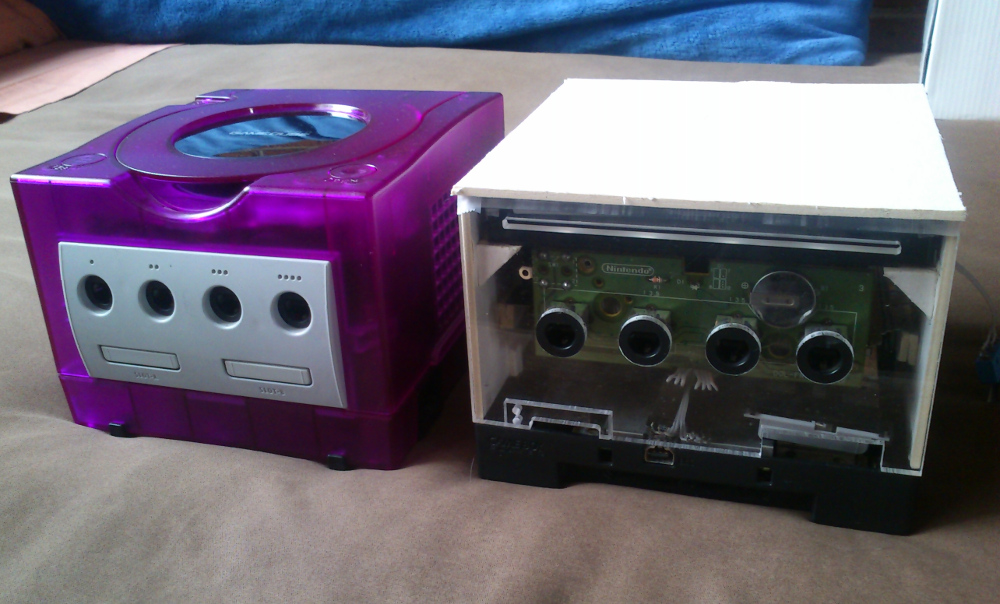

I've been working on a prototype case lately, all the details and measurings must be perfect before ordering the remaining acrylic pieces.



Here's a video of the whole thing running https://www.youtube.com/watch?v=NoBMj_k765Y

ahhh it's coming out so nice! i'm very excited :D

btw I'm open to case color advice, what do you guys think could look nice?
Attachments
(259.29 KiB) Not downloaded yet
(294 KiB) Not downloaded yet
User avatar
iamdablasta
Posts: 327
Joined: Thu Jan 30, 2014 9:24 pm

Re: WIP: Procube

Post by iamdablasta » Sat Jun 28, 2014 11:26 am

I like the purple cube next to it, much better than my green one that's for sure. Purple cube's always been nice, but you could always get a custom paint job done to it considering the work put into it so far?
the game
