attempt at micro SD gecko

Post by marcus9199 » Wed Jul 09, 2014 4:57 am

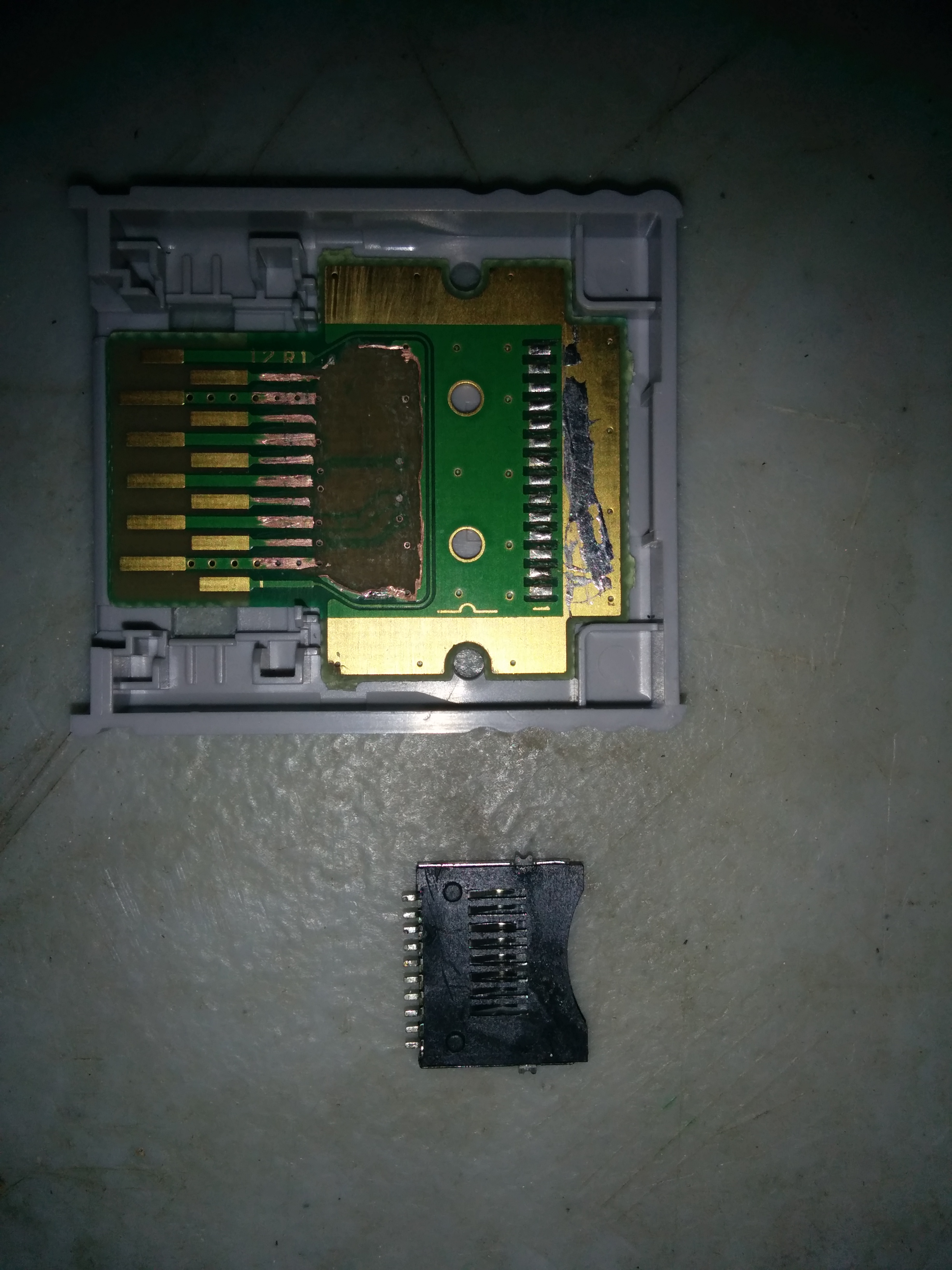

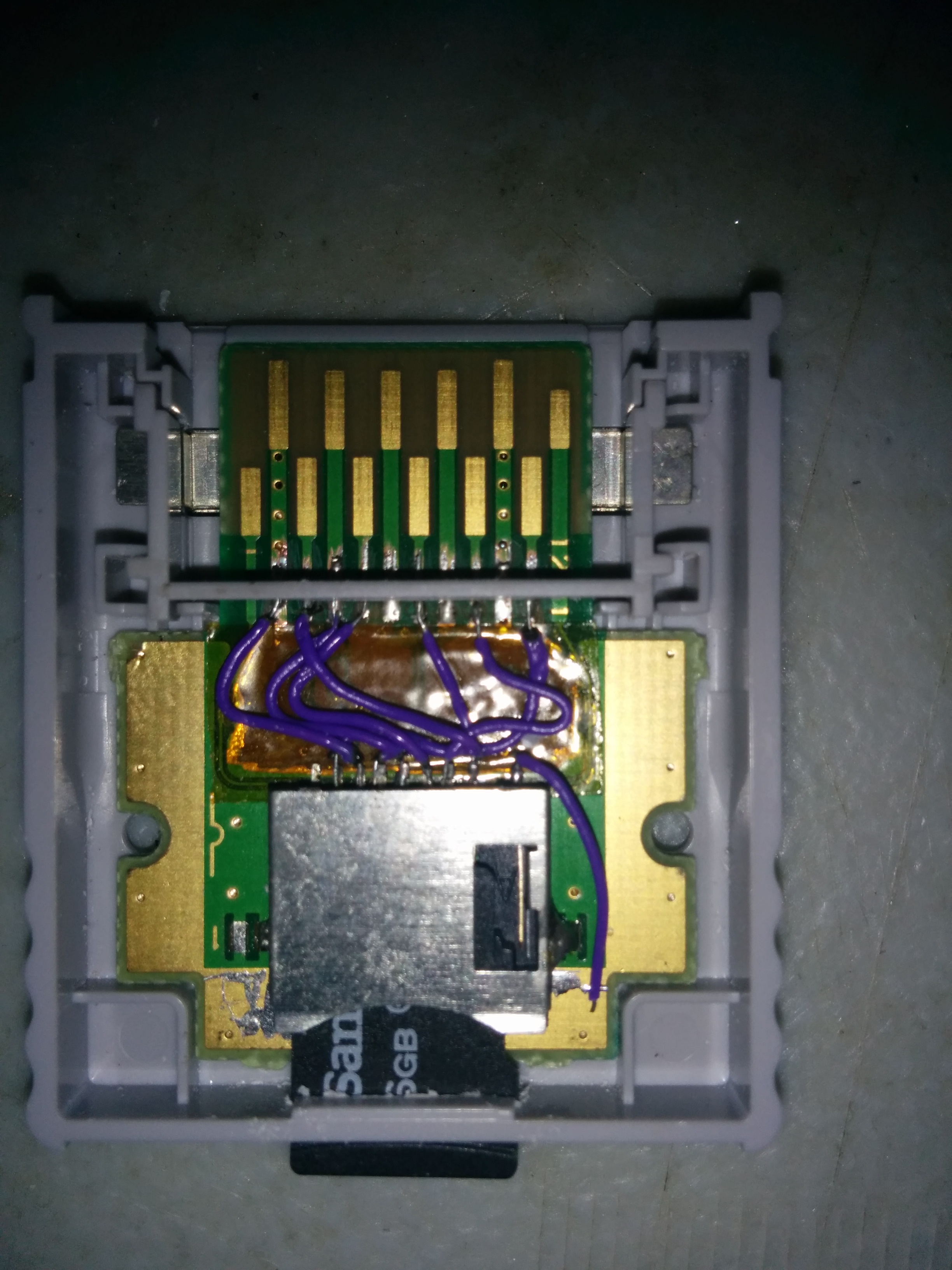

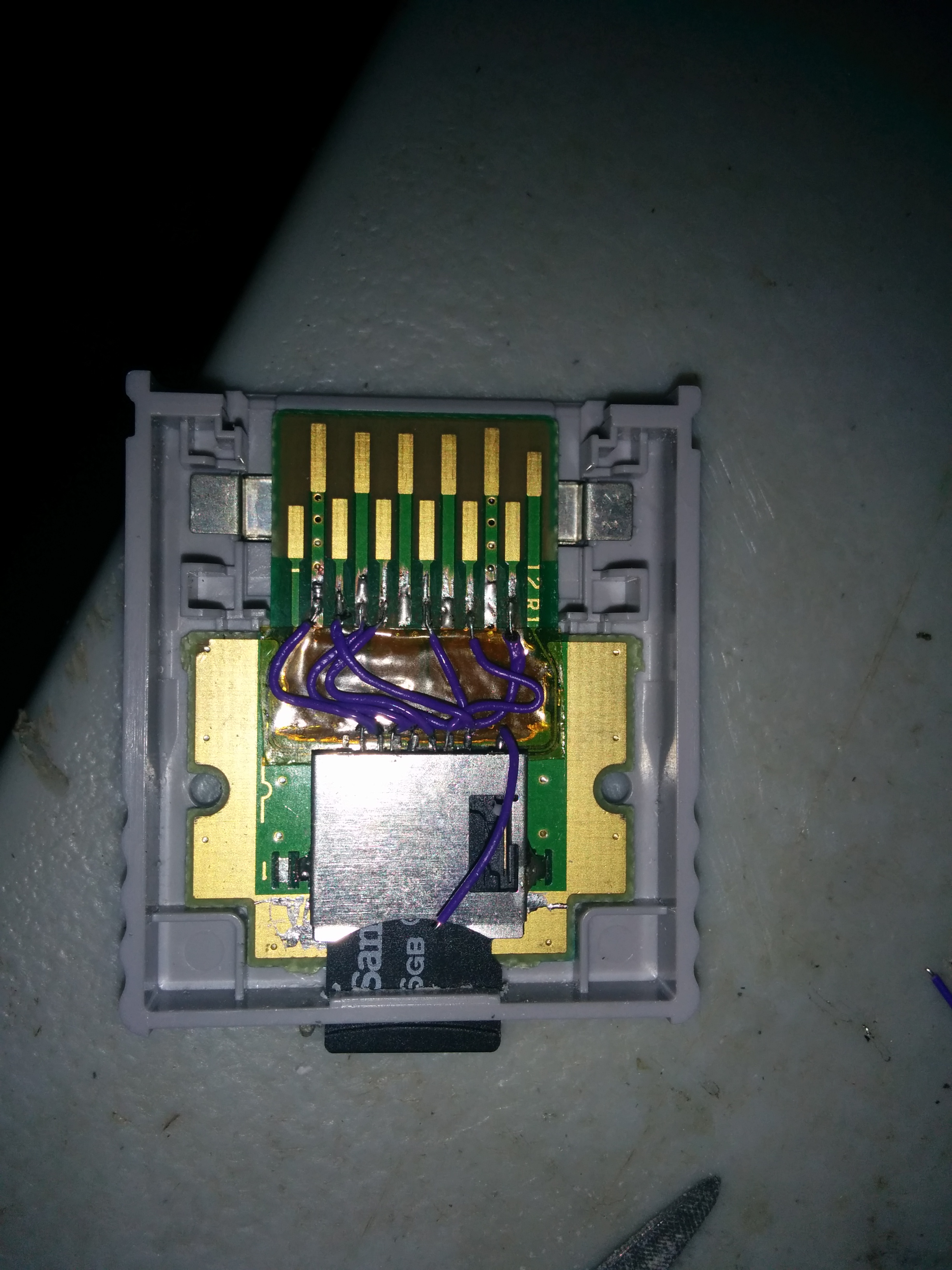

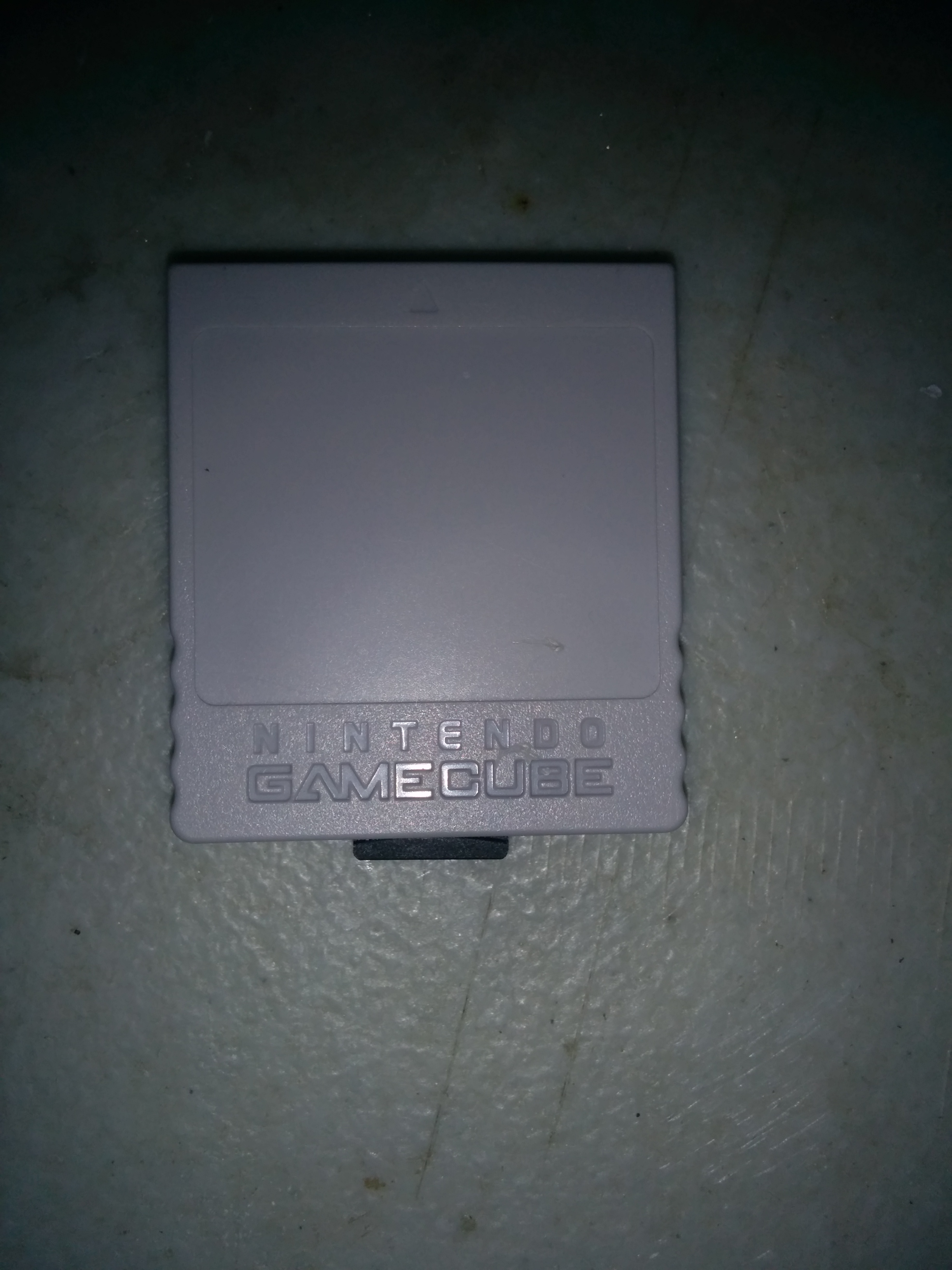

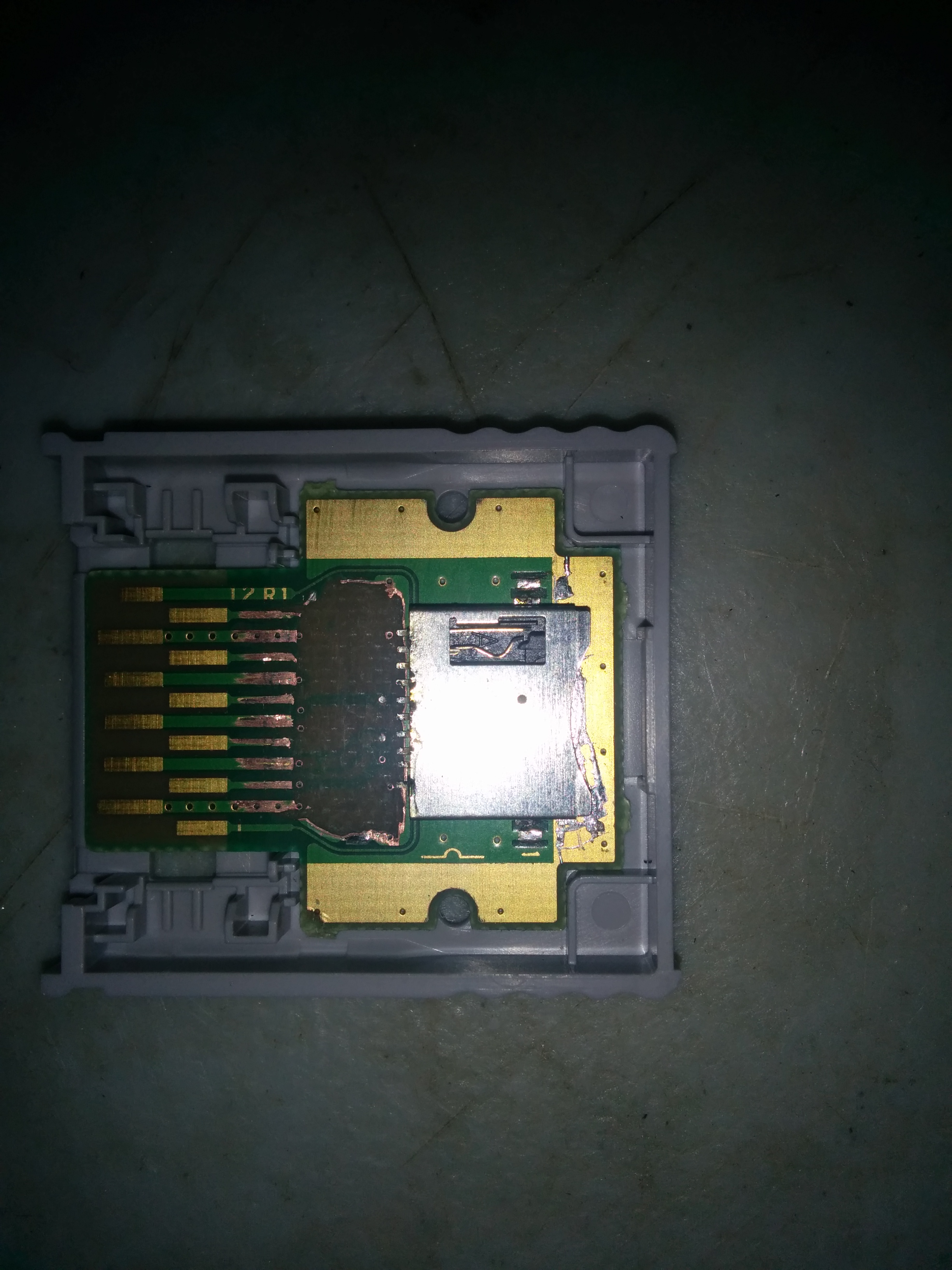

Okay... So far I lack the skills to build a hand held gamecube. "I keep breaking things" so I figured I'd stick to basics for a while. So here's my attempt at SD gecko out of official Nintendo memory and micro SD slot. Worked out pretty good. I was even able to solder the socket to the PCB of the memory. Just trying to keep it small i'm also going to try a square led on the end next to the SD slot.
Attachments
(1.17 MiB) Not downloaded yet
(1.55 MiB) Not downloaded yet
(1.62 MiB) Not downloaded yet
(1.53 MiB) Not downloaded yet
(1.56 MiB) Not downloaded yet
My wife took my Beer Away!!!!
marcus9199
Posts: 141
Joined: Fri Mar 28, 2014 5:43 am
Location: Texas

Re: attempt at micro SD gecko

Post by marcus9199 » Wed Jul 09, 2014 4:58 am

One more picture
Attachments
(1.21 MiB) Not downloaded yet
My wife took my Beer Away!!!!
User avatar
Streetwalker
Posts: 1744
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: attempt at micro SD gecko

Post by Streetwalker » Wed Jul 09, 2014 1:11 pm

Sweet mod ! :D
User avatar
keropi
Posts: 167
Joined: Sun Jun 16, 2013 9:41 pm

Re: attempt at micro SD gecko

Post by keropi » Wed Jul 09, 2014 2:47 pm

nice one!!!
User avatar
Jerrysk4au
Posts: 9
Joined: Fri Apr 25, 2014 4:34 am
Location: Largo, FL

Re: attempt at micro SD gecko

Post by Jerrysk4au » Thu Jul 10, 2014 12:12 am

Very cool, Very Swag, I like!
Thanks!
-Jerry S K
bytito
Posts: 1
Joined: Sun Jan 04, 2015 7:43 am

Re: attempt at micro SD gecko

Post by bytito » Tue Mar 17, 2015 10:47 pm

Very nice...
This is the tutorial for my own mod:
http://www.retrogames.cl/foro/viewtopic.php?f=8&t=12221
