2nd attempt GCP

Post by Duhasst0 » Wed Dec 17, 2014 8:09 pm

I have a few things left to do here. Thought I would share a bit.
Attachments
(135.96 KiB) Not downloaded yet
User avatar
emu_kidid
Site Admin
Posts: 4608
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: 2nd attempt GCP

Post by emu_kidid » Wed Dec 17, 2014 9:48 pm

Nice, I'm liking those button cut outs, they look pretty slick.
User avatar
megalomaniac
Posts: 2480
Joined: Sun Aug 21, 2011 5:33 am
Location: Drunk in Texas
Contact:

Re: 2nd attempt GCP

Post by megalomaniac » Thu Dec 18, 2014 6:07 am

looks great
emu_kidid wrote: beer is like WD40 for megalomaniac's brain, gets the gears moving
>>> BadAssConsoles.com <<<

Image Image Image
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Thu Dec 18, 2014 8:42 am

Thanks for the comments guys, those cutouts were made with my dremel and some sand paper, dpad was with a knife and sand paper. Definitely ready to put this project to sleep.
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: 2nd attempt GCP

Post by Ashen » Thu Dec 18, 2014 3:07 pm

Looks great man! Is it comfortable to hold?
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Thu Dec 18, 2014 8:32 pm

So so, a friend of mine suggested using middle fingers for the l/r buttons.
User avatar
RazorX2014
Posts: 165
Joined: Sun Feb 23, 2014 6:50 pm

Re: 2nd attempt GCP

Post by RazorX2014 » Fri Dec 19, 2014 4:15 pm

i wish i could make a portable but the site you get them cases from isnt worth it for me because i live in the uk the amount i would pay for a AG-85 off polycase.com including shipping is $66.89 which in my money is £42.79 which is way to high for just a case :( i wish i could source them locally
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Thu Dec 25, 2014 2:56 am

So I hit a snag, I have to pull one side of batteries out to resolder my 5v lead. Outside of that, my wasp is acting weird, it keeps flashing the blue led. Not sure why yet, going it's not a loose wire. Of it is, I and a lot of stuff to remove from my board to wait for my megadrives to come in. I think once I get my 5v lead resoldered I should be able to see what's wrong, I also need to solder in the bios battery. I'm hoping to get this done before the new year but with my luck probably won't get done.
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Thu Dec 25, 2014 12:22 pm

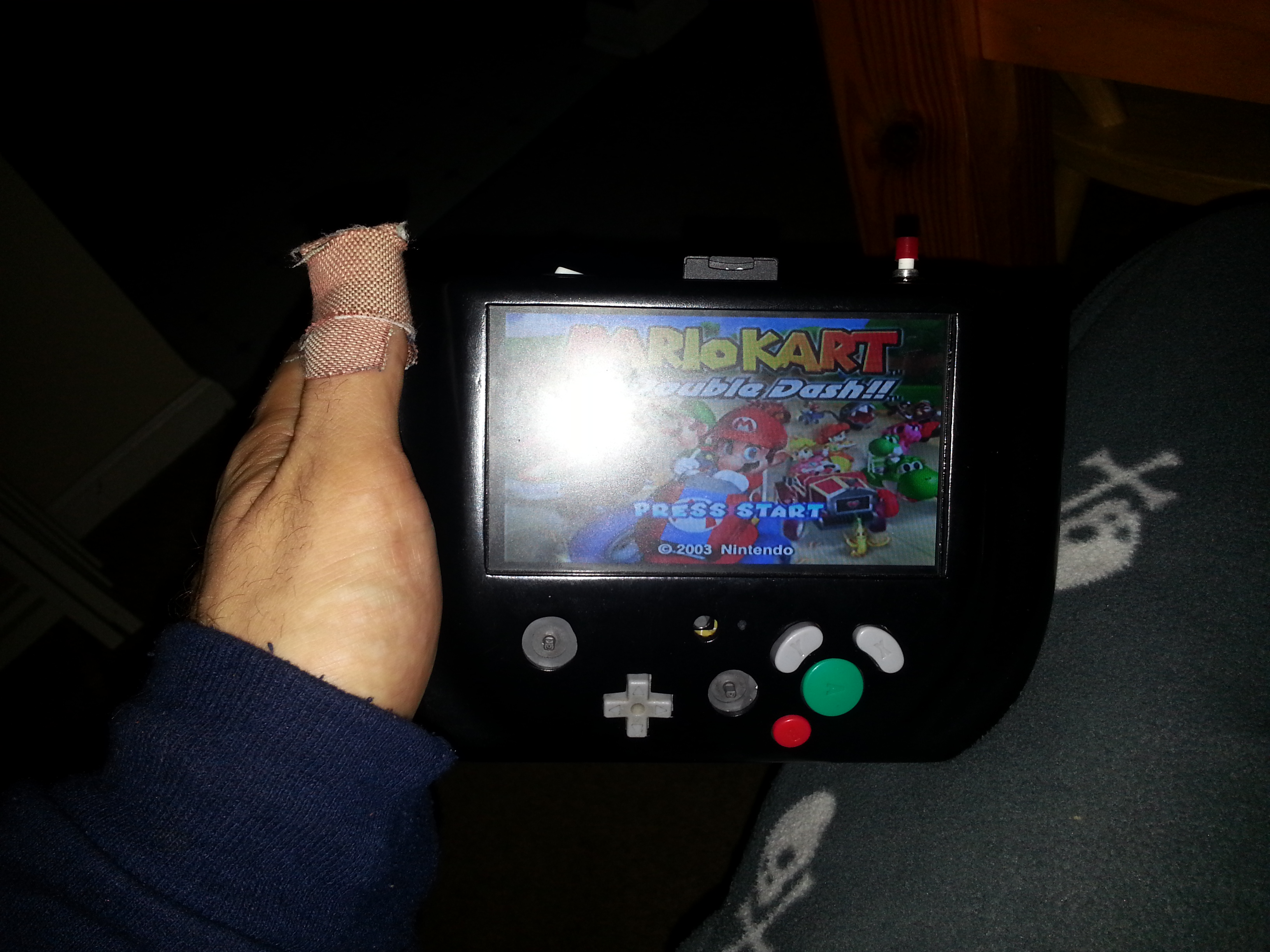

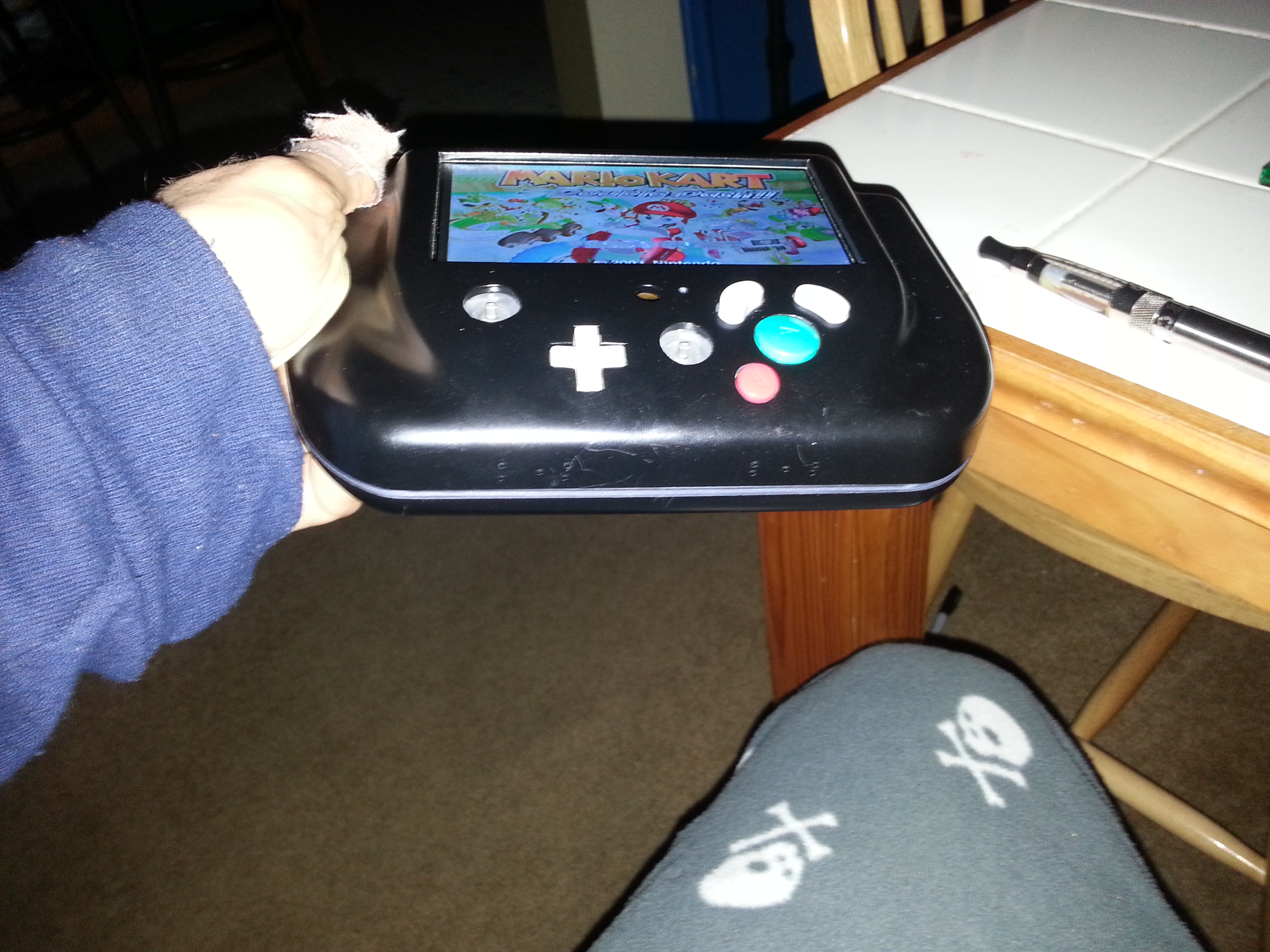

So, I got some work done, I need a couple things but its looking good so far,
I need to get some caps for my 3ds analogs, and I some how lost my start
button, and I need to add a volume knob, right now its at a not so loud volume,
but could be turned down a bit,

The back didn't turn out like I wanted it to really, I feel its lacking quite a bit,
but really this is only my first one, I have a couple more boards laying around
that work and my brother got me a really cool case, but this case requires me
to make all new buttons and d pad, it will also challenge my ability to solder
and clean it up a bit.

Anyway, with out further rantings...
Attachments
(1.79 MiB) Not downloaded yet
(2.18 MiB) Not downloaded yet
(2.13 MiB) Not downloaded yet
(2.17 MiB) Not downloaded yet
(2.16 MiB) Not downloaded yet
User avatar
emu_kidid
Site Admin
Posts: 4608
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: 2nd attempt GCP

Post by emu_kidid » Thu Dec 25, 2014 1:38 pm

nice thumb & pyjamas. GCP2 is looking good.
Xesxen
Posts: 28
Joined: Mon Jul 21, 2014 4:24 pm
Location: The Netherlands

Re: 2nd attempt GCP

Post by Xesxen » Thu Dec 25, 2014 6:08 pm

It looks like (on the third picture) that the fan is fully exposed. Maybe it's better to add something to prevent stuff from entering that hole breaking the fan.
User avatar
megalomaniac
Posts: 2480
Joined: Sun Aug 21, 2011 5:33 am
Location: Drunk in Texas
Contact:

Re: 2nd attempt GCP

Post by megalomaniac » Thu Dec 25, 2014 9:25 pm

thumb looks like the scarecrow
emu_kidid wrote: beer is like WD40 for megalomaniac's brain, gets the gears moving
>>> BadAssConsoles.com <<<

Image Image Image
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Fri Dec 26, 2014 9:22 pm

You should see what it looks like right now, with no bandage.
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: 2nd attempt GCP

Post by Duhasst0 » Sun Jan 11, 2015 11:09 am

No photos for this update, but soon. Anyway, still need to drill a hole for my volume knob and get some caps for the 3ds sliders. Had a bug in the external memory card wiring, fixed that. Thinking of a way to do charge and play but require a new power switch and another power port, which means more cutting.

Handling so far isn't too bad, thought it would be better, but the way the screen has to be tilted makes it a bit harder to play. So, I am thinking of other ways to do it, if I were to design it differently.

Well in a couple days or so I will do a quick video of it in action.
