Wasp fusion help, swiss won't load

Portables, case replacements, mods etc, all in here!
Post Reply
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Wasp fusion help, swiss won't load

Post by Ires2953 » Fri Oct 14, 2016 10:11 pm

Hi guys this is my first post, so I'm sorry if something is not correct in my post, but I need help with something. My wasp is wired up with a megadrive v3 I have the right side lid pin and the p29 wired to the ground for auto boot, before I wIredell anything it just said to enter a disk and there was a light blue flashing lights on the wasp and would sometimes blink reading disc. Now that it's wired when I turn it on swiss doesn't load but it also doesn't show the gamecube logo it just boots to a blank screen weather an sd card is in or not I have a 64gb microsd with an adapter what do I need to do to get swiss to load and how do I getc the SD card to have games be read.
vinzanity
Posts: 21
Joined: Tue Jun 04, 2013 5:35 am

Re: Wasp fusion help, swiss won't load

Post by vinzanity » Sat Oct 15, 2016 3:55 am

Is swiss already flashed to the wasp? Also what is the IPL version of your cube? I encountered something similar wherein the "reading disc" was in conjunction with the blink of the wasp so I believed that my wiring was ok. So I used a Wii to upgrade the Wiikey fusion firmware to 1.5 and then flash Swiss. When I plugged it back to the Gamecube, it was now working properly. I figured my IPL was incompatible but thanks to Swiss being flashed as firmware, I have no more issues.
User avatar
emu_kidid
Site Admin
Posts: 4645
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: Wasp fusion help, swiss won't load

Post by emu_kidid » Sat Oct 15, 2016 6:03 am

If it boots to a black screen you've shorted something major out.
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Sun Oct 16, 2016 3:33 am

When I take out my wasp and and put in a disk drive it works great also if I desolder the wires the blinking and reading disk still happens. I have not tried flashing swiss as I thought it was preloaded, how might I go about that I haven't been able to find anything?
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Sun Oct 16, 2016 6:57 am

also my board is a cpu-50 it is a dol 101 if that helps diagnose the problem
Duhasst0
Posts: 179
Joined: Sun Jan 13, 2013 1:35 am

Re: Wasp fusion help, swiss won't load

Post by Duhasst0 » Sun Oct 16, 2016 9:07 pm

Only way to really help is to post some really clear pics of the wiring.
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Mon Oct 17, 2016 12:13 am

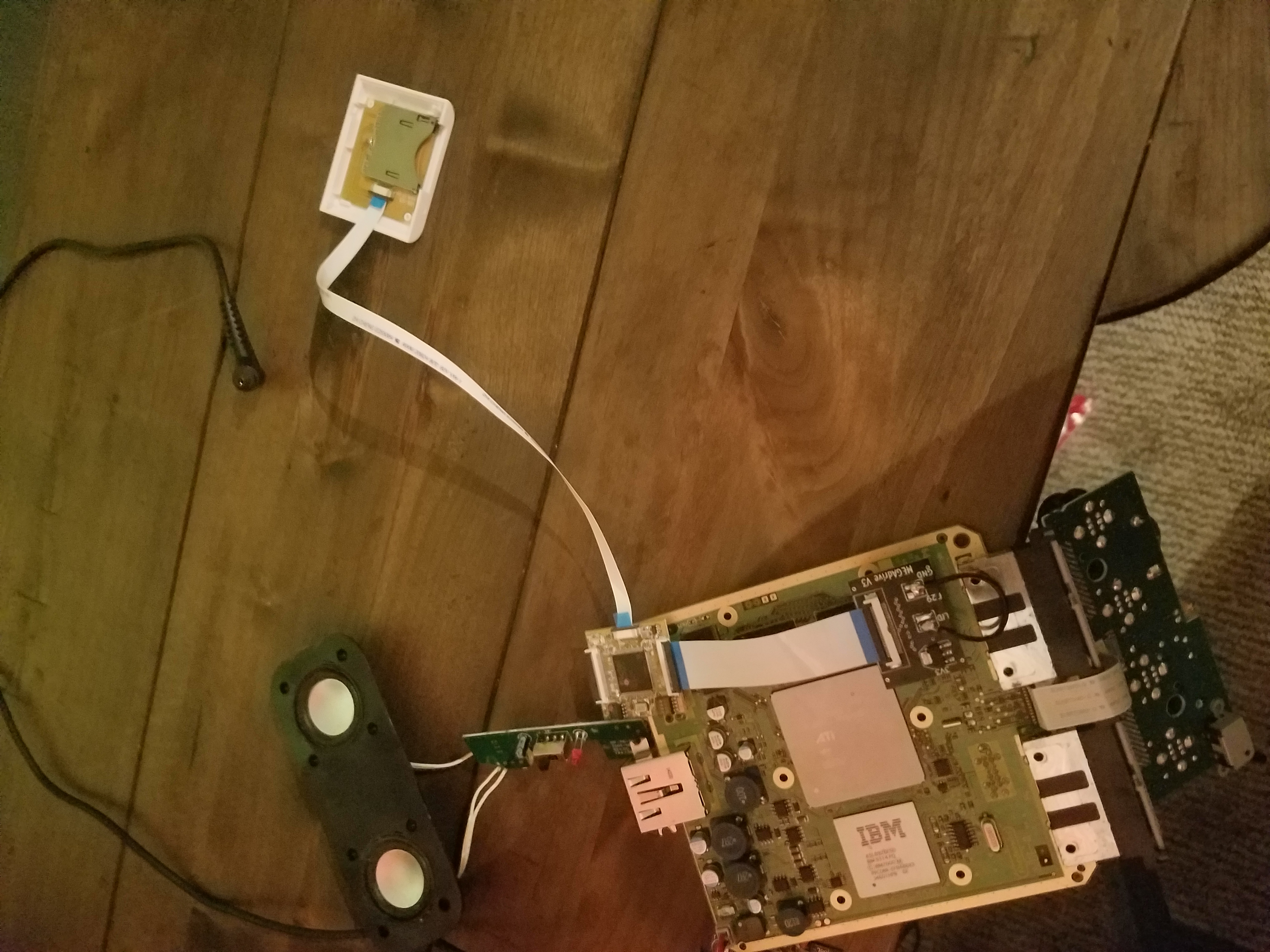

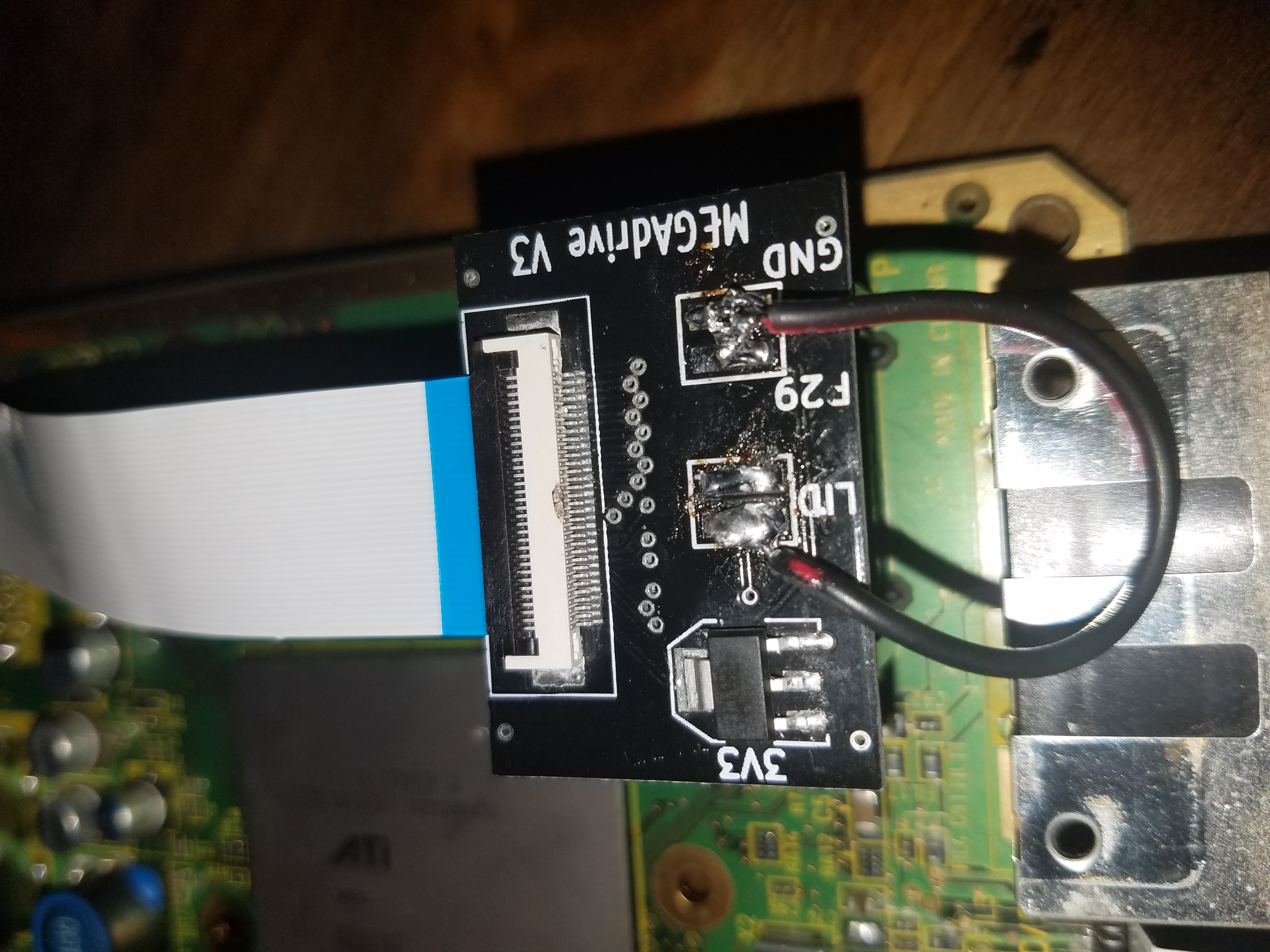

Here are the wiring pictures
Attachments
(3.27 MiB) Not downloaded yet
Wiring pictures
(3.57 MiB) Not downloaded yet
User avatar
Streetwalker
Posts: 1744
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: Wasp fusion help, swiss won't load

Post by Streetwalker » Mon Oct 17, 2016 3:39 pm

Pop an sd card in.
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Mon Oct 17, 2016 7:46 pm

Ok, would you like to see pictures of that as well it doesn't change anything but I may not have the right sd card when I format it in win dowsing it is exfat it is 64 gb and is a Mico sd with an sd adapter I've also seen sdxc show up. Is this the right kind of sd card if so does anything need to be on it previous to me putting it in and if not what kind of sd will I need and will that need anything on it.
User avatar
Sierron
Posts: 160
Joined: Mon Apr 18, 2016 11:33 pm
Location: Germany

Re: Wasp fusion help, swiss won't load

Post by Sierron » Mon Oct 17, 2016 11:12 pm

Exfat won't work. It's a format Microsoft made, but nobody gave a damn about. Use Fat32.
Own a couple PAL and JPN cubes. And three BBAs. Homeland and PSO I/II.
User avatar
Aleron Ives
Posts: 89
Joined: Thu Oct 13, 2016 3:56 am
Location: California

Re: Wasp fusion help, swiss won't load

Post by Aleron Ives » Tue Oct 18, 2016 12:45 am

To be fair, Microsoft made FAT32 as well. :P The difference is that FAT32 has been around for a very long time and is well documented, while Microsoft won't release the specifications of the much newer exFAT, so only Microsoft-approved devices can read and write it.

AFAIK all SDXC cards come formatted in exFAT, so you have to reformat them to FAT32 to make them usable by anything that isn't Windows. SDHC cards are usually shipped with FAT32, but they have a maximum storage capacity of 32GB, so any time you buy an SD card with a capacity > 32GB, you know you have to reformat it before you can use it. ;)
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Tue Oct 18, 2016 6:52 am

Ok thanks guys, so when I format it to FAT32, the all I need to do is put it in and it'll work or does something need to be on the card?
User avatar
Streetwalker
Posts: 1744
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: Wasp fusion help, swiss won't load

Post by Streetwalker » Tue Oct 18, 2016 8:44 am

SD format doesn't matter to boot, it just needs to be in the slot.
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Tue Oct 18, 2016 11:42 pm

So since it is not booting was there something wrong with my wiring or does something need to be on the card?
Ires2953
Posts: 8
Joined: Fri Oct 14, 2016 9:53 pm

Re: Wasp fusion help, swiss won't load

Post by Ires2953 » Wed Oct 19, 2016 5:18 am

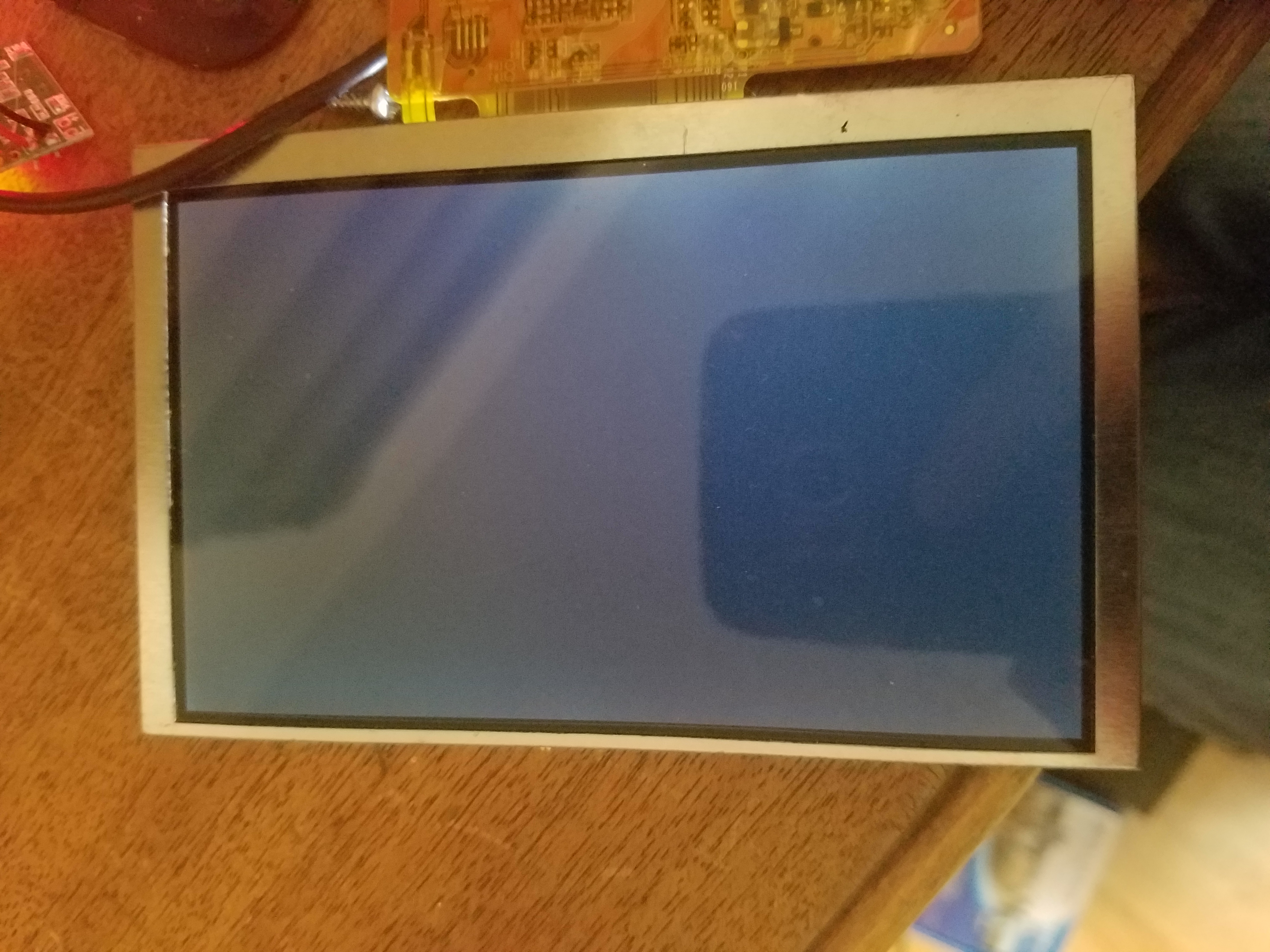

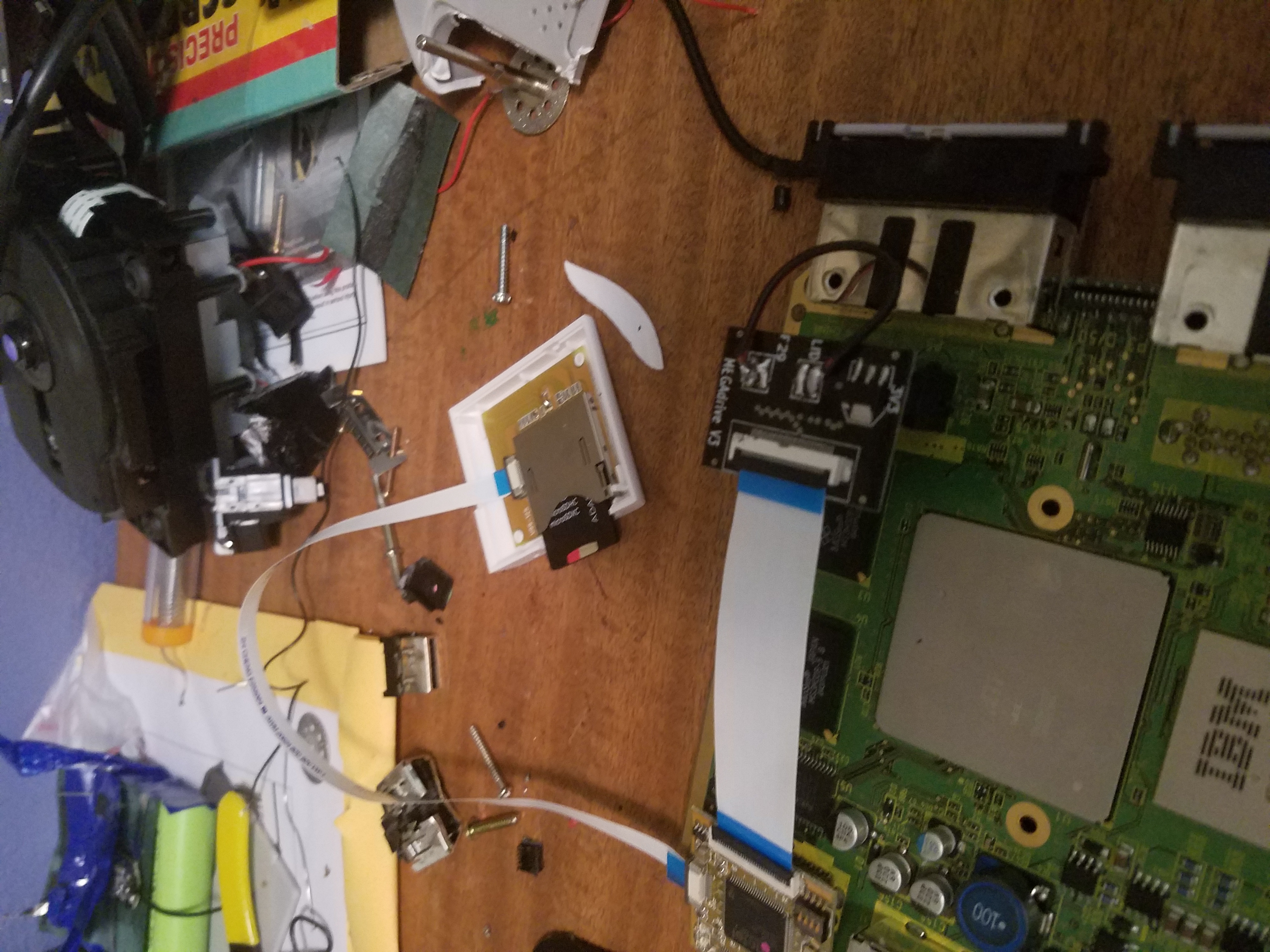

Ok so I formatted my sd as a fate32 and put it in still with the same result when it's all wired up blank screen but when the wire is desoldered it shows Insert disk/reading disk in correspondence with a blinking blue light on the wasp which seems to be normal, it blinks blue as well when wired but no display what can I do? There is nothing on the SD card by the way.
Attachments
(3.37 MiB) Not downloaded yet
(3.24 MiB) Not downloaded yet
(3.18 MiB) Not downloaded yet
