Re: First Gamecube Portable - Worklog

Post by _Nold_ » Sun May 06, 2012 11:20 am

Just taken a cable apart.. but there is only the resistor inside :/
so i just soldered a 75 Ohm resistor to the composite line... without success.. couldn't find a 220uF Elko yet :/

Will try that later! Thanks so far!
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
kel01
Posts: 149
Joined: Fri Feb 18, 2011 10:45 pm

Re: First Gamecube Portable - Worklog

Post by kel01 » Sun May 06, 2012 12:53 pm

That's strange as I also just took a cable apart before my last post to make sure that I was correct and there was a small PCB with the cap and resistor on.

Was it the official composite cable that you took apart or a straight through RGB scart cable. The straight through RGB scart cable only has the resistor in the console plug side and the caps in the scart connector side but the official PAL composite cable should have both cap and resistor in the console side plug.

Have you tried connecting speakers to the motherboard or even headphones just to test if the GC boots the IPL? Have you also tried connecting to another display via composite. These, especially the former could help verify if the problem lies with the composite video or the motherboard itself.

PS. If your composite cable is infact the official nintendo one then it could possibly be that it is one from an older system like the SNES or N64. I don't think these older composite cable are forward compatible with the GC and would probably not have both the resistor and the cap.
Last edited by kel01 on Sun May 06, 2012 1:02 pm, edited 2 times in total.
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: First Gamecube Portable - Worklog

Post by Ashen » Sun May 06, 2012 12:54 pm

The resistor and cap in the PAL composite cables are not absolutely needed just for testing. You should be getting video regardless. Can you confirm that both chips are getting warm when powered on, along with the ram chips? Can you show a closer up pic of where you're pulling composite from?
kel01
Posts: 149
Joined: Fri Feb 18, 2011 10:45 pm

Re: First Gamecube Portable - Worklog

Post by kel01 » Sun May 06, 2012 1:14 pm

Ashen wrote:The resistor and cap in the PAL composite cables are not absolutely needed just for testing. You should be getting video regardless. Can you confirm that both chips are getting warm when powered on, along with the ram chips? Can you show a closer up pic of where you're pulling composite from?
Good point Ashen, even without a resistor and cap he should still get some kind of picture but when it comes to fault finding you can't really count anything out. It depends what display he is using and how fussy it is with video signals, not all displays handle signals as well as others.

Not referring to the GC specifically but some displays or video equipment won't sync to the signal at all if you don't have the correct components in the cable.
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Sun May 06, 2012 2:38 pm

Hooked it up to my tv .. no success...
Hooked up audio to tv.. no success...

All BGAs are getting warm... I guess i destroyed it again...

and i just tryed this composite cable (which is official nintendo).. it works fine on my gc...
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
kel01
Posts: 149
Joined: Fri Feb 18, 2011 10:45 pm

Re: First Gamecube Portable - Worklog

Post by kel01 » Sun May 06, 2012 5:29 pm

_Nold_ wrote:Hooked it up to my tv .. no success...
Hooked up audio to tv.. no success...

All BGAs are getting warm... I guess i destroyed it again...

and i just tryed this composite cable (which is official nintendo).. it works fine on my gc...
Sorry to hear that. This hobby does end up costing us a lot of money and disappointment until we get it right but it's worth it when we do.
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: First Gamecube Portable - Worklog

Post by Ashen » Mon May 07, 2012 12:58 am

Might be best to just disconnect everything you've done so far and start over from scratch. Sounds silly, but sometimes it works. Are you sanding down the edges of your boards after you cut them? Check good for solder bridges/shorts/etc.
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Mon May 07, 2012 6:51 am

Ashen wrote:Might be best to just disconnect everything you've done so far and start over from scratch. Sounds silly, but sometimes it works.
I'll do so :/
Are you sanding down the edges of your boards after you cut them?
Yea.. and i'm always trying to check them in the light...
Check good for solder bridges/shorts/etc.
It feels like i did that about 1000 times but ok...


If it's fried it dosn't really matter.. next cube is on it's way ^^ got it for under 3€ ^^
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Sun May 13, 2012 5:24 pm

I did the same cut to an equal board result = same.. Not Working board but warm BGAs..

So i unsoldered the Composite cable and tryed to hold it on a other spot... and it worked!!
The curious about it, it's the same point basically! (That's what my diode-tester tells me)

In german i would say "Wer misst, misst Mist!" (Who measures, measures bullshit!) ^^

So i can finally go on with the work on my gcp! ^^
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Wed Jun 20, 2012 5:58 am

After a long time without progress (because of i was moving) here is a little update..

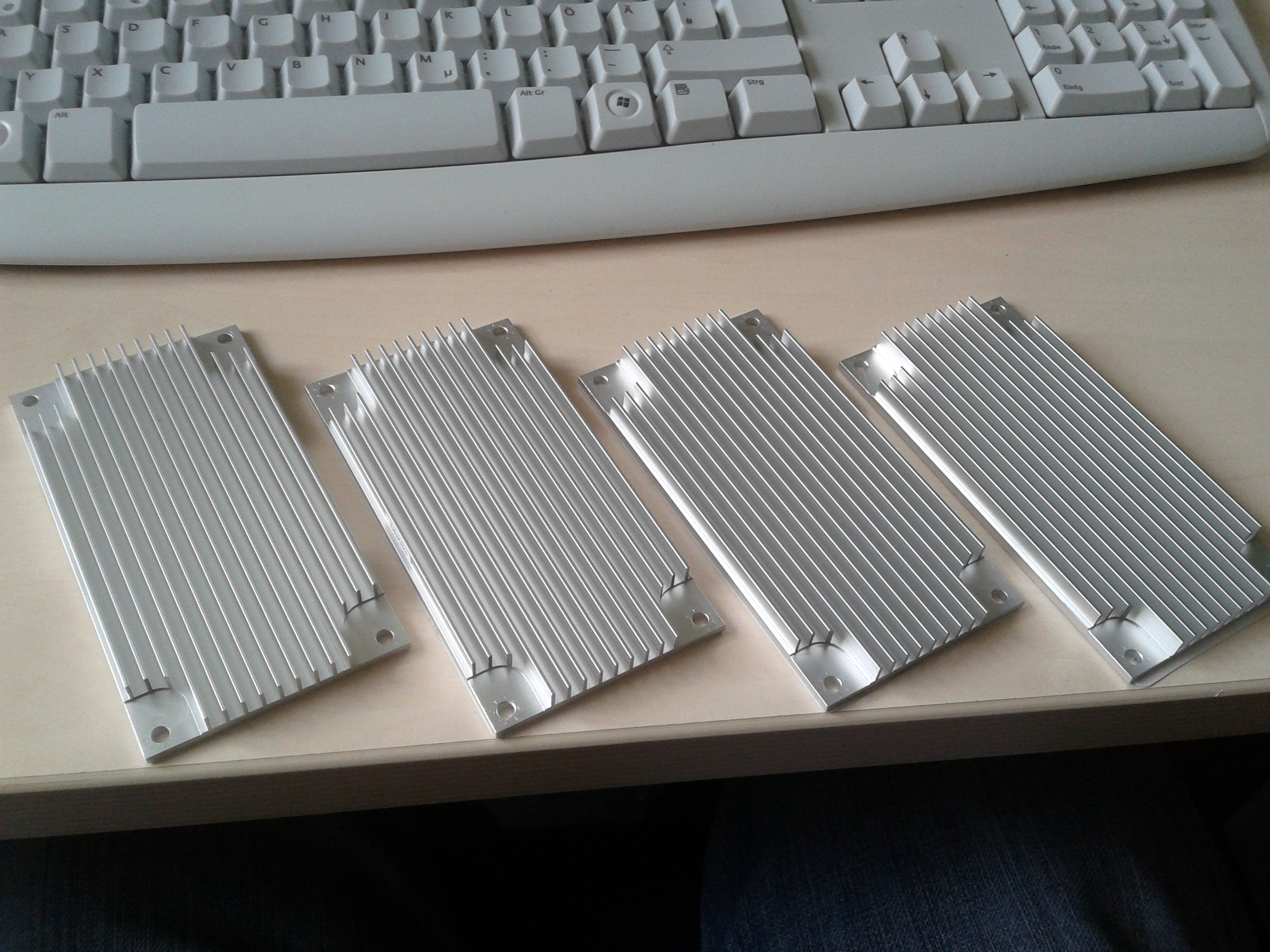

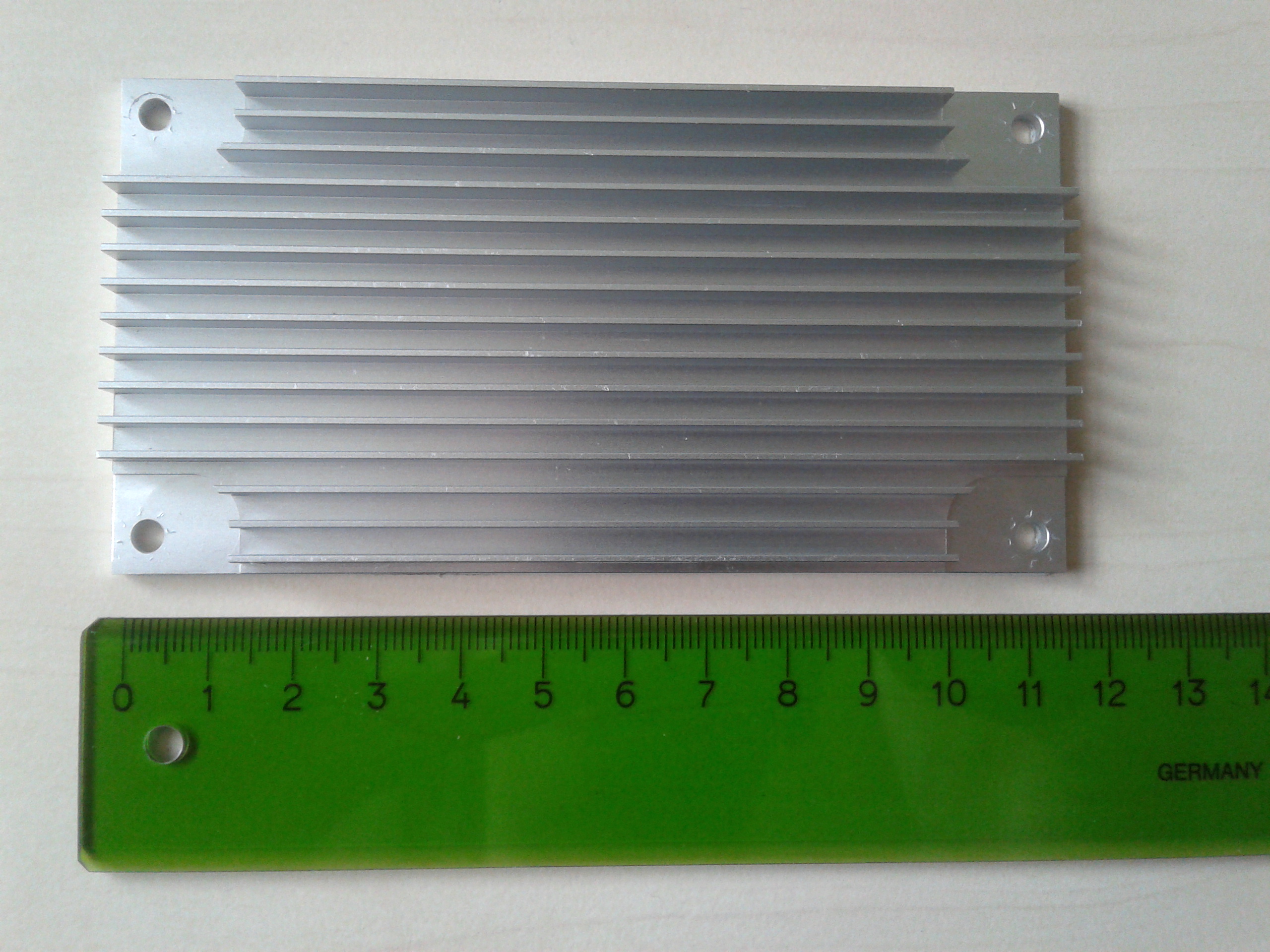

Look what i've found at work these days:

All of them :)

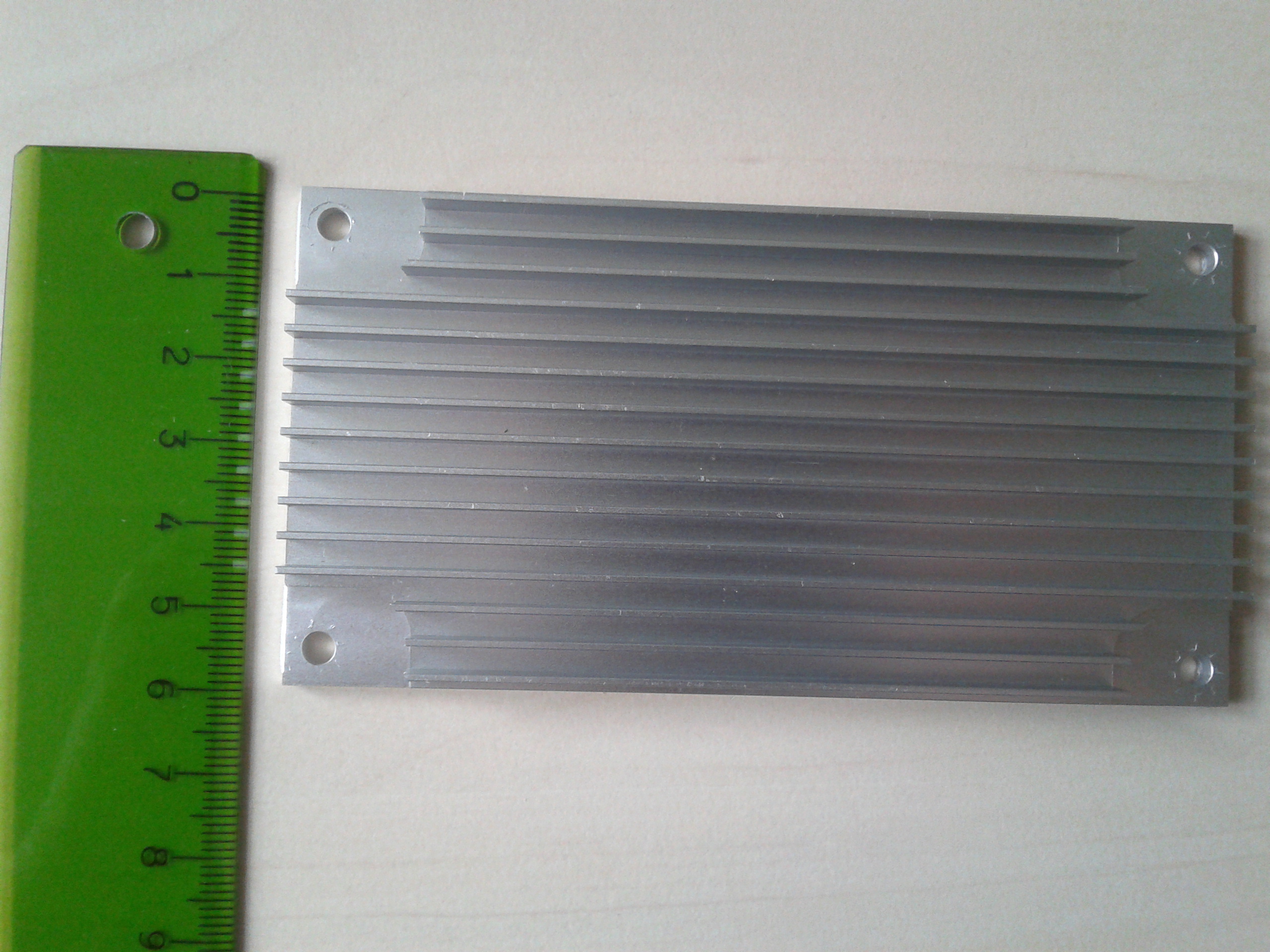

Length
Width

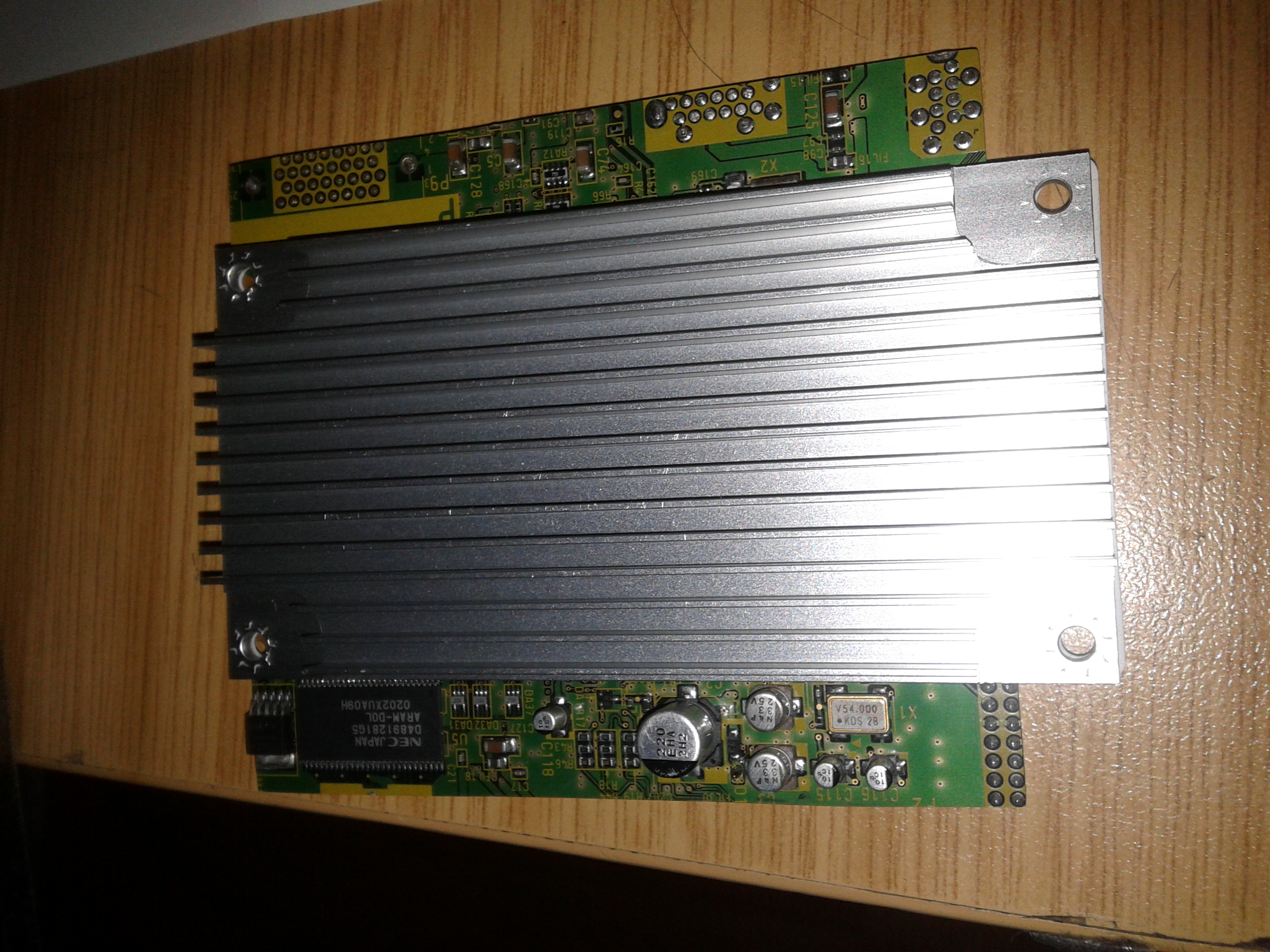

@MB
Thickness
Attachments
(1.02 MiB) Not downloaded yet
(1.64 MiB) Not downloaded yet
(1.25 MiB) Not downloaded yet
(1.25 MiB) Not downloaded yet
(1.49 MiB) Not downloaded yet
Last edited by _Nold_ on Wed Jun 20, 2012 10:36 am, edited 1 time in total.
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: First Gamecube Portable - Worklog

Post by Ashen » Wed Jun 20, 2012 10:01 am

Nice man! Those are damn near perfect stock.
User avatar
megalomaniac
Posts: 2480
Joined: Sun Aug 21, 2011 5:33 am
Location: Drunk in Texas
Contact:

Re: First Gamecube Portable - Worklog

Post by megalomaniac » Fri Jun 22, 2012 3:34 am

Good stuff
emu_kidid wrote: beer is like WD40 for megalomaniac's brain, gets the gears moving
>>> BadAssConsoles.com <<<

Image Image Image
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Wed Aug 22, 2012 7:51 pm

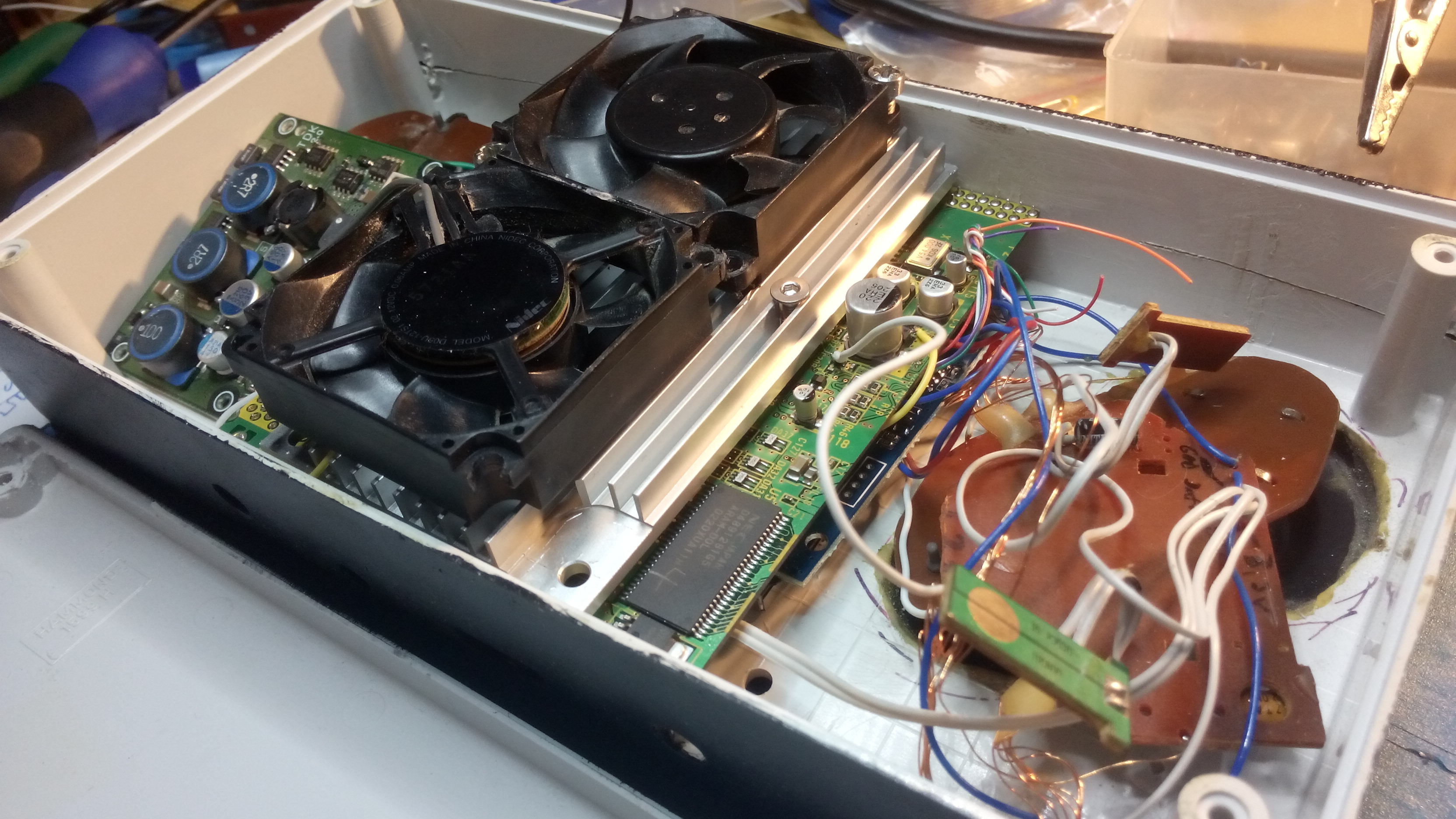

Just a quick little update... (yes i'm still alive ;-) )

Since i was moving there was not much time for funny stuff... now i got a lot of time and will continue on my portable!
But now i don't have some place to work on the case anymore :( So this has to wait until everything else is working.. today i just quickly installed the wkf... Finally it works ;-)
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: First Gamecube Portable - Worklog

Post by Ashen » Wed Aug 22, 2012 8:50 pm

Awesome. :)

I was just wondering what happened to this. Excited to see it come together now!
User avatar
liquitt
Posts: 1776
Joined: Thu Apr 01, 2010 5:43 am
Location: neverland
Contact:

Re: First Gamecube Portable - Worklog

Post by liquitt » Wed Aug 22, 2012 9:43 pm

_Nold_ wrote:Just a quick little update... (yes i'm still alive ;-) )

Since i was moving there was not much time for funny stuff... now i got a lot of time and will continue on my portable!
But now i don't have some place to work on the case anymore :( So this has to wait until everything else is working.. today i just quickly installed the wkf... Finally it works ;-)
so you finally moved to the big awesome city? ;)
please search before you ask - a lot has been discussed already!
(or use google with "site:gc-forever.com *term*")
http://is.gd/MDmZcr

we also have a wiki filled with knowledge
http://is.gd/dX58Rm
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Thu Aug 23, 2012 6:16 am

liquitt wrote:
_Nold_ wrote:Just a quick little update... (yes i'm still alive ;-) )

Since i was moving there was not much time for funny stuff... now i got a lot of time and will continue on my portable!
But now i don't have some place to work on the case anymore :( So this has to wait until everything else is working.. today i just quickly installed the wkf... Finally it works ;-)
so you finally moved to the big awesome city? ;)
yea! We need too meet sometime ;-)
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
liquitt
Posts: 1776
Joined: Thu Apr 01, 2010 5:43 am
Location: neverland
Contact:

Re: First Gamecube Portable - Worklog

Post by liquitt » Thu Aug 23, 2012 8:18 am

_Nold_ wrote:
liquitt wrote:
_Nold_ wrote:Just a quick little update... (yes i'm still alive ;-) )

Since i was moving there was not much time for funny stuff... now i got a lot of time and will continue on my portable!
But now i don't have some place to work on the case anymore :( So this has to wait until everything else is working.. today i just quickly installed the wkf... Finally it works ;-)
so you finally moved to the big awesome city? ;)
yea! We need too meet sometime ;-)
sure thing, hit me up!
please search before you ask - a lot has been discussed already!
(or use google with "site:gc-forever.com *term*")
http://is.gd/MDmZcr

we also have a wiki filled with knowledge
http://is.gd/dX58Rm
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Sat Jul 15, 2017 2:49 pm

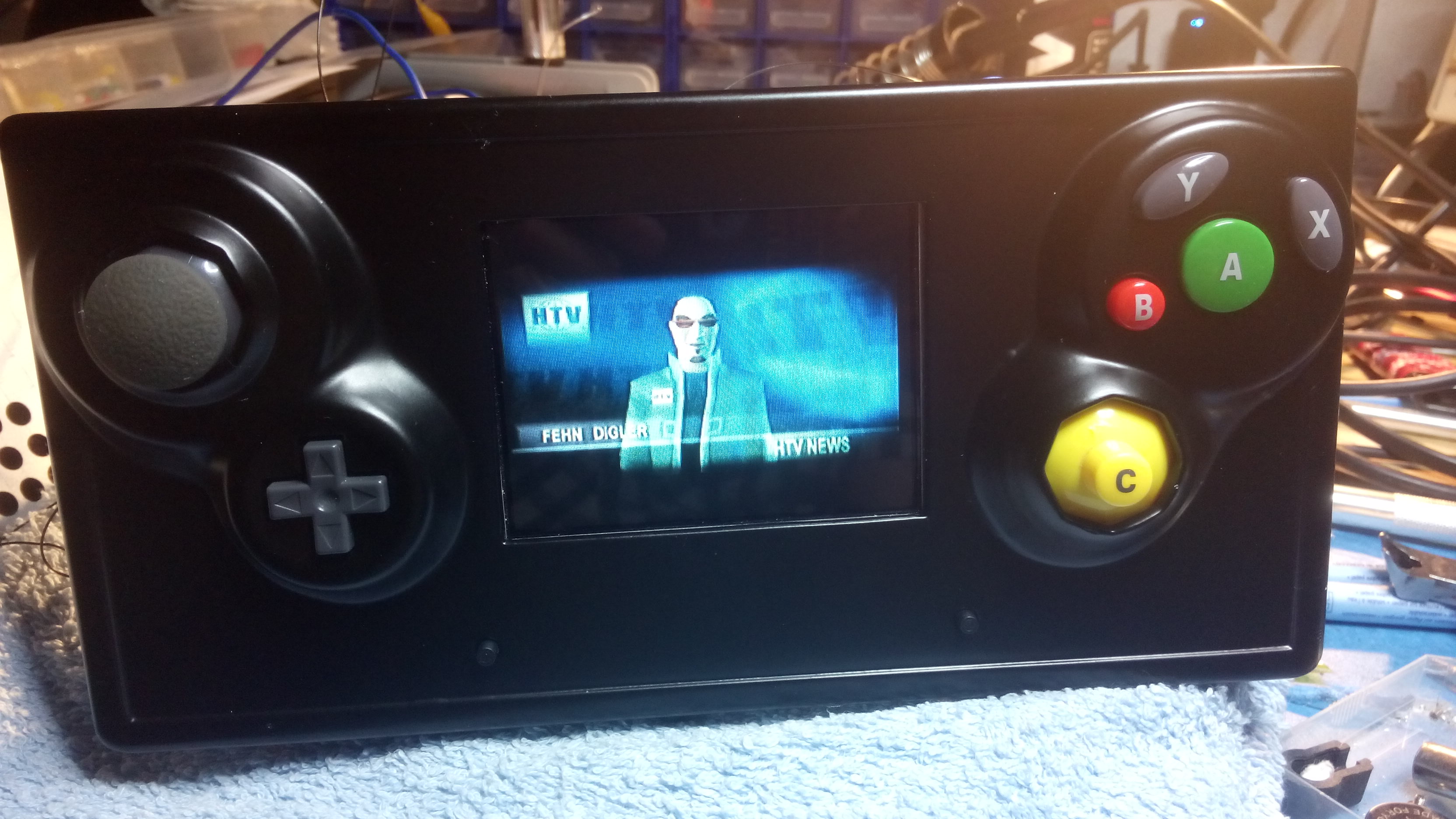

Soooo.. after just 5 years, I've nealy finished my GCp :D :D :D (It was laying around, did work the last 5 days on it ;-) )

As I sad, nearly everything is done! As you can see here:



I also have the battery done.. BUT...I just can't get the R/L-Trigger to work.... I don't even understand how they could have worked, in the first place... I'm totally frustraded right now, because, even if it's an 3rd party-controller, I still beleave I know how a potentiometer work...

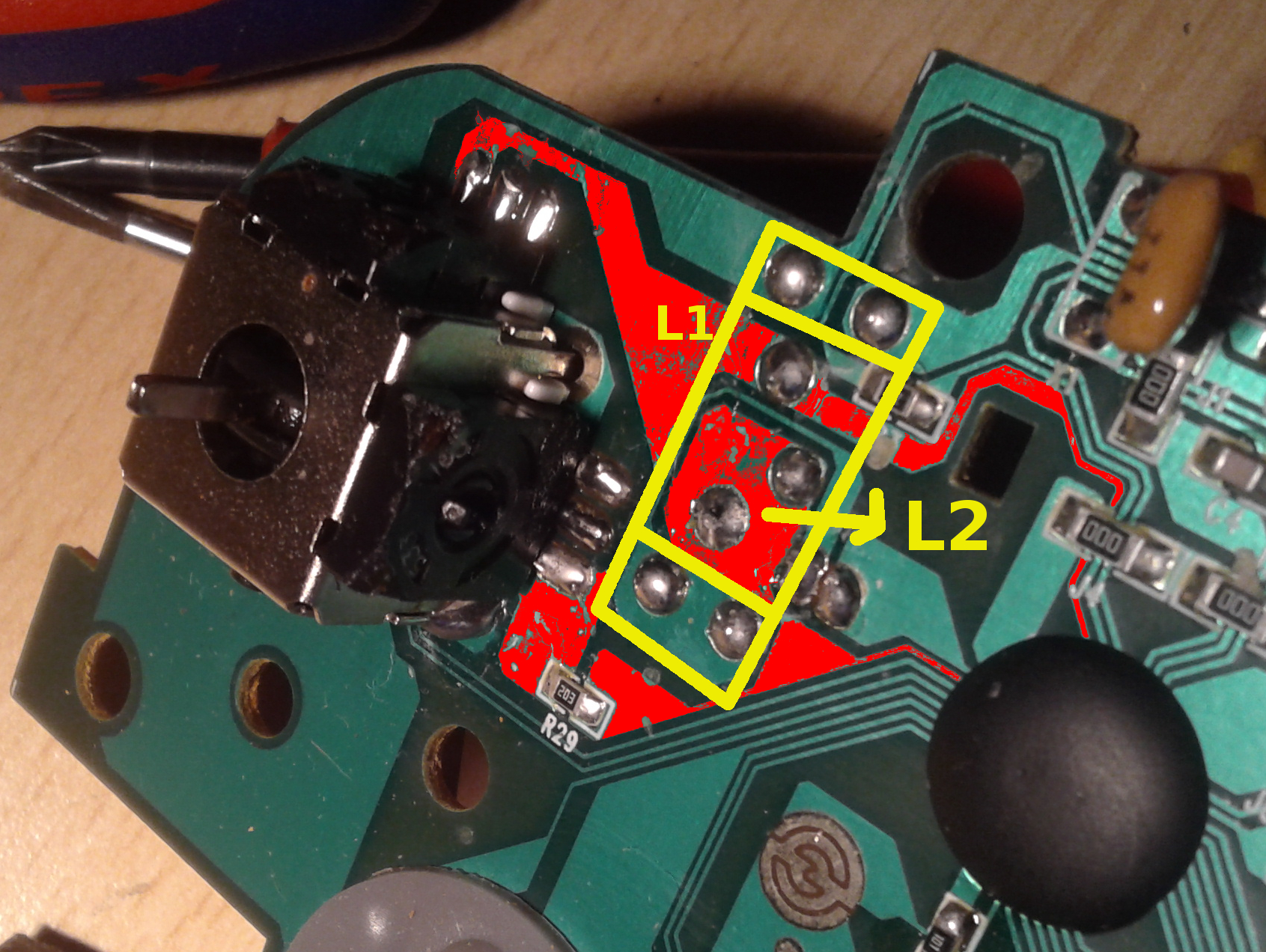

Anyway.. Here is what I don't get.. the red traces ares the traces, connected to the trigger-pot... the yellow outline is where the pot would normaly sit, so the lower and upper two pins, are common ground / pot-case...


But both traces connected to the pot, are also connected to the analog stick?!?.. How should it work?!.. the traces on the right side look a little different, but there it also doesn't work.. I tried zenlocs method with an BC547 - no success... also a other verson of this schematic... I even connected a potentiomenter to the two pins L1/L2 and it didn't do nothing...

I was now thinking about removing R29 - but it has to work in this way... I just don't get it... :x

I hope you guys can save me, from building a whole new case... :(
Attachments
(1.79 MiB) Not downloaded yet
(803.27 KiB) Not downloaded yet
(778.27 KiB) Not downloaded yet
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
emu_kidid
Site Admin
Posts: 4703
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: First Gamecube Portable - Worklog [Update!]

Post by emu_kidid » Thu Jul 20, 2017 3:35 pm

Good to see you back :D I have no idea how to solve your problem, but nevertheless I posted to say hi :P
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog [Update!]

Post by _Nold_ » Fri Jul 21, 2017 4:52 am

emu_kidid wrote:Good to see you back :D I have no idea how to solve your problem, but nevertheless I posted to say hi :P
Thanks :D
Yea, I guess I will use a pcb from another 3rd party controller, which layout makes much more sense to me ^^
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog [Update!]

Post by _Nold_ » Sat Jul 22, 2017 1:50 pm

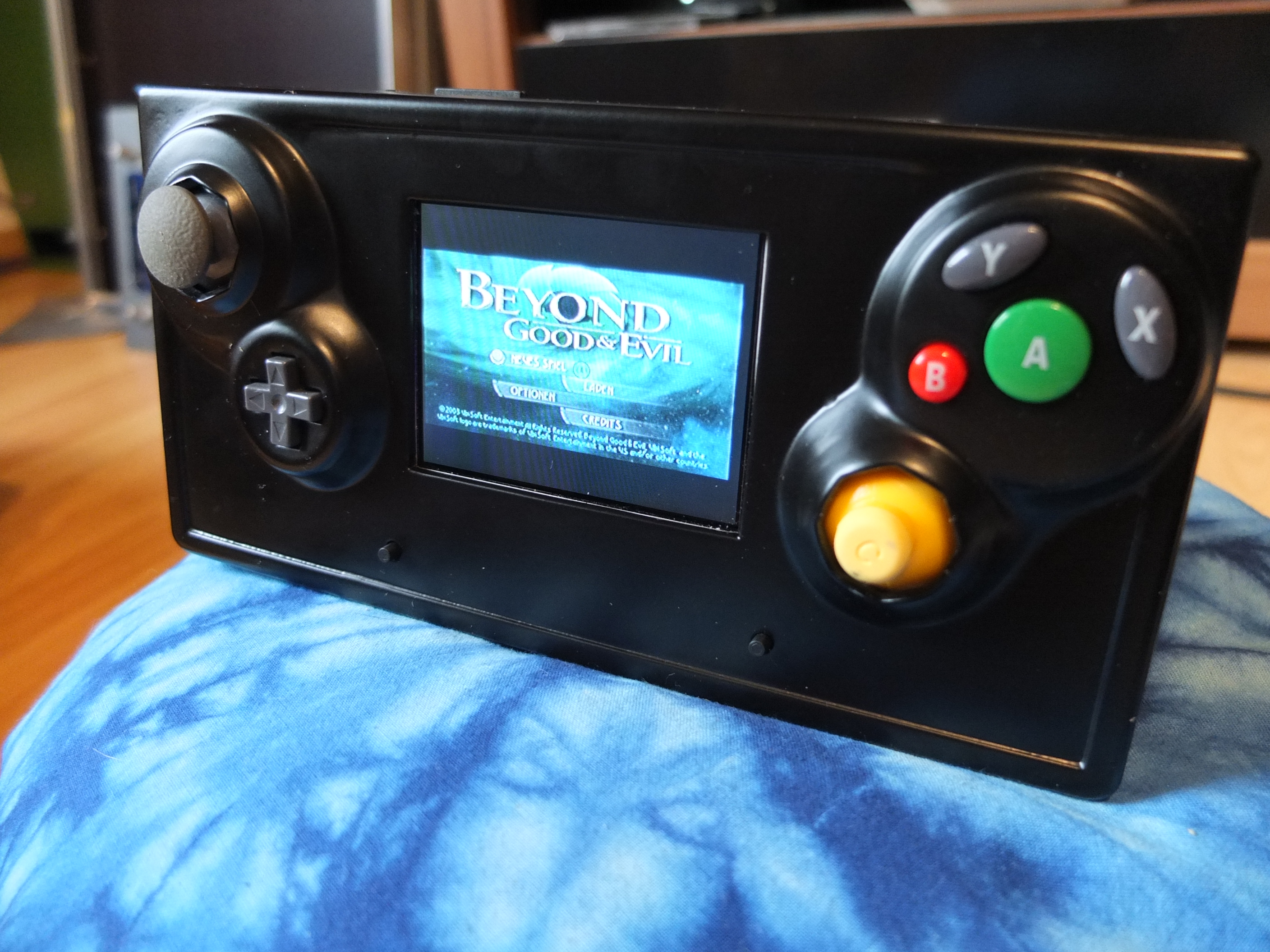

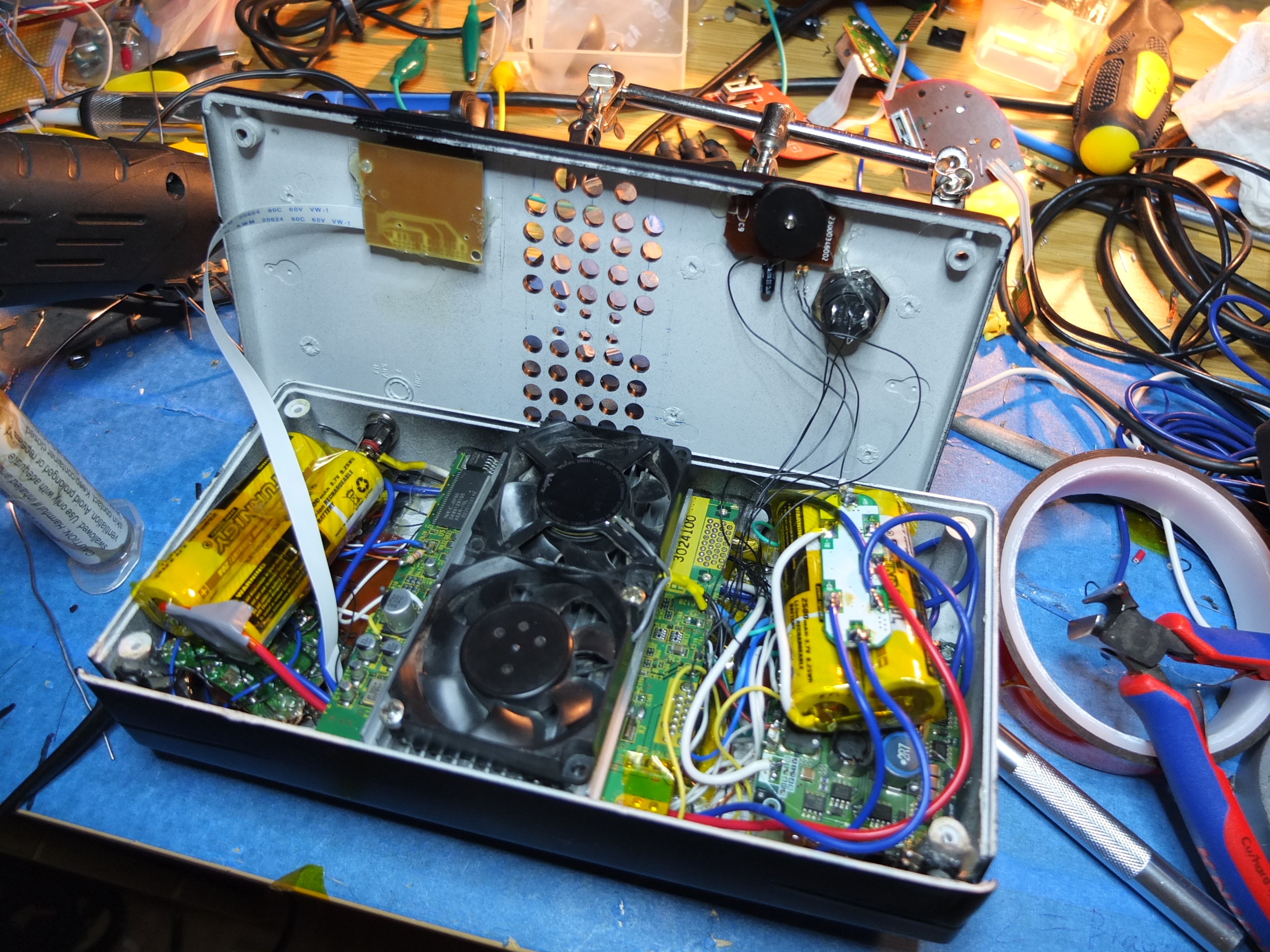

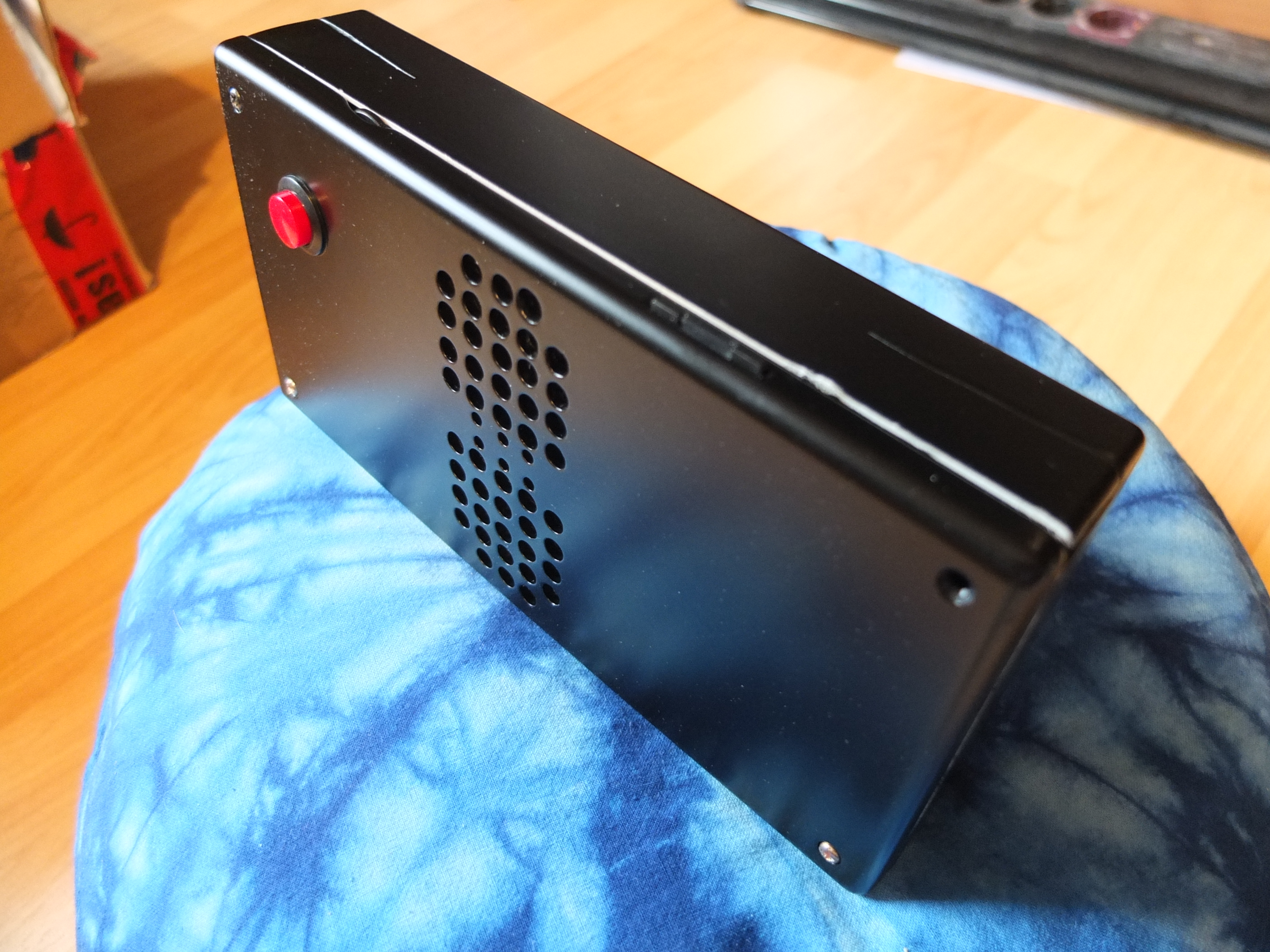

It's done! I swapped out the Controller-Board & hooked it up to the parts of the other controller. Not I't working and I've nearly finished my PortaCube :)
Just some polishing here and there.. But ATM I'm happy it's working :)



Attachments
(2.64 MiB) Not downloaded yet
(2.72 MiB) Not downloaded yet
(2.63 MiB) Not downloaded yet
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
liquitt
Posts: 1776
Joined: Thu Apr 01, 2010 5:43 am
Location: neverland
Contact:

Re: First Gamecube Portable - Worklog

Post by liquitt » Wed Jul 26, 2017 1:13 pm

_Nold_ wrote:
liquitt wrote:
_Nold_ wrote:Just a quick little update... (yes i'm still alive ;-) )

Since i was moving there was not much time for funny stuff... now i got a lot of time and will continue on my portable!
But now i don't have some place to work on the case anymore :( So this has to wait until everything else is working.. today i just quickly installed the wkf... Finally it works ;-)
so you finally moved to the big awesome city? ;)
yea! We need too meet sometime ;-)
haha, never did. still here?
please search before you ask - a lot has been discussed already!
(or use google with "site:gc-forever.com *term*")
http://is.gd/MDmZcr

we also have a wiki filled with knowledge
http://is.gd/dX58Rm
User avatar
_Nold_
Posts: 212
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: First Gamecube Portable - Worklog

Post by _Nold_ » Sat Jul 29, 2017 6:52 am

liquitt wrote:
_Nold_ wrote:
liquitt wrote:
so you finally moved to the big awesome city? ;)
yea! We need too meet sometime ;-)
haha, never did. still here?
Still the wrong city ;-) But I'm moving this year again, guess I'll be a little bit closer to you - if you haven't moved the last years :D
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
liquitt
Posts: 1776
Joined: Thu Apr 01, 2010 5:43 am
Location: neverland
Contact:

Re: First Gamecube Portable - Worklog

Post by liquitt » Mon Jul 31, 2017 9:52 am

_Nold_ wrote:
liquitt wrote:
_Nold_ wrote: yea! We need too meet sometime ;-)
haha, never did. still here?
Still the wrong city ;-) But I'm moving this year again, guess I'll be a little bit closer to you - if you haven't moved the last years :D
just inside this city ;)
please search before you ask - a lot has been discussed already!
(or use google with "site:gc-forever.com *term*")
http://is.gd/MDmZcr

we also have a wiki filled with knowledge
http://is.gd/dX58Rm
Post Reply
