DoLaunchers: McLoader and Brosexec

Release threads for homebrew & utilities only
Post Reply
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

DoLaunchers: McLoader and Brosexec

Post by suloku » Sat Aug 29, 2015 2:28 pm

UPDATE: Updated mcloader to 0.2, it can now load dols with command line parameters via embedding cli files into the gci prior to writing the dol to the memory card. A tool for embeding cli files has been written and is included in the binary package.

I've coded some simple dol launching programs based on swiss's dol loading code, basically to be used with the new Home Bros. exploit, but can work with other hombrew loading methods. I've done this mostly for myself, but might come in handy for others.

You can grab the binaries and source code here: https://github.com/suloku/dolaunch/releases
There are also gci files for the brosexec exploit, all are boot.dol when in the memory card, so be careful not to overwrite!

There are 3 different loaders, here's a brief explanation:
- Brosexec: a very basic loader that will load autoexec.dol from the sd card. No more, no less. Takes 11 blocks in the memory card, uses latest libfat, so SDHC support. Also included is the binary (SDLOADER.BIN) for use with the AR boot method.

- BrosexecConf: this loader uses a configuration file from the sd card, dol files can be associated to 12 buttons on the gamecube controller, there's also a timer and autoboot feature. It also can pass command line arguments to loaded dols using .cli files. Comes in two flavors:
----> Text version: black background and white text. Takes 13 memory card blocks.
----> Background version: uses libPNGU to load a png background image from the sd card. On screen text can be disabled, so the background image can be used as splash screen for autoboot or whatever you want.

- McLoader: this program will search the memory card for dol files converted using dol2gci and allows booting them.

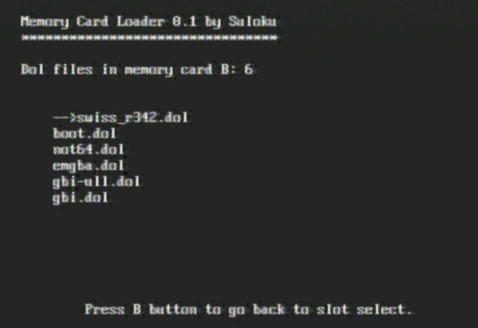

Here's a screenshot of brosexecconf in action:
note: the first line won't appear, I removed it, it's a screenshot from and old version.

I hope that this is useful for someone.
Last edited by suloku on Sat Sep 05, 2015 11:39 pm, edited 2 times in total.
User avatar
emu_kidid
Site Admin
Posts: 4376
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: DoLaunchers: McLoader and Brosexec

Post by emu_kidid » Sat Aug 29, 2015 3:05 pm

These look great, I want to get something like McLoader into Swiss (allow .GCI DOL entries on the memory card to be booted) one of these days. And maybe a GUIless version of Swiss to allow for much better compression.
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

Re: DoLaunchers: McLoader and Brosexec

Post by suloku » Sat Sep 05, 2015 11:39 pm

UPDATE: Updated mcloader to 0.2, it can now load dols with command line parameters via embedding cli files into the gci prior to writing the dol to the memory card. A tool for embeding cli files has been written and is included in the binary package. Still fits in 9 blocks, which is nice.

How to use in readme files of mcloader and cliembed.
Smashbro29
Posts: 27
Joined: Tue Dec 03, 2013 3:24 am

Re: DoLaunchers: McLoader and Brosexec

Post by Smashbro29 » Wed Dec 23, 2015 8:22 pm

So I can use this to load into Swiss? Because all I want to hit Name Entry in Melee and then just be at Swiss.

Then from Swiss load GBI IN 240p but that's a different topic.

I just want to make sure I have it clear, I'm taking the .gci file and placing it on my memory card, right? So what's all the other stuff in the folder for?
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

Re: DoLaunchers: McLoader and Brosexec

Post by suloku » Wed Dec 23, 2015 9:30 pm

Smashbro29 wrote:So what's all the other stuff in the folder for?
Short answer: so anyone can get the setup the way they like the most: brosexec loads autoexec.dol from sdgecko; brosexecconf is a simple dol loading app (quicker than browsing trough swiss if you use many dol files), mcloader is a dol launcher app, but reads the dol files from the memory card (in case you don't have a sd gecko and want to boot multiple dols on the cube).

Since you only want to boot straight into swiss, then boot whatever from there (via sd gecko), your best option is to install the "boot.gci" file in the "brosexec" folder. That file will launch autoexec.dol from sd gecko. Autoexec.dol should be a renamed swiss dol in your setup.

You could in fact just get swiss on your mc, brosexec is just an intermediary dol with 2 goals: reduce required memory card space and to easily update swiss (or whatever is your autoexec.dol).

ps: latest nightly swiss build takes 126 blocks, while brosexec takes only 11 blocks.
ps2: curious how it's been 2-3 months since I last entered the forums and your post was made today too.
Smashbro29
Posts: 27
Joined: Tue Dec 03, 2013 3:24 am

Re: DoLaunchers: McLoader and Brosexec

Post by Smashbro29 » Wed Dec 23, 2015 11:32 pm

suloku wrote:
Smashbro29 wrote:So what's all the other stuff in the folder for?
Short answer: so anyone can get the setup the way they like the most: brosexec loads autoexec.dol from sdgecko; brosexecconf is a simple dol loading app (quicker than browsing trough swiss if you use many dol files), mcloader is a dol launcher app, but reads the dol files from the memory card (in case you don't have a sd gecko and want to boot multiple dols on the cube).

Since you only want to boot straight into swiss, then boot whatever from there (via sd gecko), your best option is to install the "boot.gci" file in the "brosexec" folder. That file will launch autoexec.dol from sd gecko. Autoexec.dol should be a renamed swiss dol in your setup.

You could in fact just get swiss on your mc, brosexec is just an intermediary dol with 2 goals: reduce required memory card space and to easily update swiss (or whatever is your autoexec.dol).

ps: latest nightly swiss build takes 126 blocks, while brosexec takes only 11 blocks.
ps2: curious how it's been 2-3 months since I last entered the forums and your post was made today too.
I have the regular memory card and one with an SD card slot. SD card slot is the one doing the heavy lifting. So it can take however many blocks it wants if it can be on the sd card. Basically: No way is swiss fitting on my memory card.

Also I'm watching you clearly.

I got this working! Loaded into the latest Swiss nightly! Just can't figure out how to get Swiss to force 240p but that's not this thread.
psprofi
Posts: 9
Joined: Tue Aug 18, 2015 10:15 am

Re: DoLaunchers: McLoader and Brosexec

Post by psprofi » Fri Apr 15, 2016 4:20 am

Hi,
Is there a working iso file for PAL region (text version would be nice)?.
I can not get it to work myself.
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

Re: DoLaunchers: McLoader and Brosexec

Post by suloku » Fri Apr 15, 2016 5:45 am

If you are going to boot from iso, why not directly use swiss instead?

I've never tried making a hombrew iso, but there should be a prograt to make one from dol files lying on the forums.
psprofi
Posts: 9
Joined: Tue Aug 18, 2015 10:15 am

Re: DoLaunchers: McLoader and Brosexec

Post by psprofi » Fri Apr 15, 2016 11:27 pm

I don't want to have to boot swiss nightly with an old version of swiss i have here. :lol:

The tool is not working with your dol. On Emulator the iso is working, but if i boot the iso via swiss (to test it) i get a stack dump.
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

Re: DoLaunchers: McLoader and Brosexec

Post by suloku » Sun Apr 17, 2016 2:47 pm

Does swiss allow you to boot other homebrew isos (i.e. an emulator)?

Does "brosexec" work or the same happens? (broseexec is the one that will just load autoexec.dol from sdcard)

From what I understand, you seem to have a modchip setup and you want a simple way to load things from sdcard by using a standard launcher dvd?
User avatar
Streetwalker
Posts: 1651
Joined: Mon Dec 30, 2013 7:50 am
Location: Israel

Re: DoLaunchers: McLoader and Brosexec

Post by Streetwalker » Sun Apr 17, 2016 7:31 pm

I don't think you can boot an ISO in itself but you can load DOLs.
psprofi
Posts: 9
Joined: Tue Aug 18, 2015 10:15 am

Re: DoLaunchers: McLoader and Brosexec

Post by psprofi » Sun Apr 17, 2016 10:23 pm

suloku wrote:From what I understand, you seem to have a modchip setup and you want a simple way to load things from sdcard by using a standard launcher dvd?
Thats what i want. I like your launcher, because its simple and fast.

I will try to run brosexec and other homebrew from iso in a few days.
User avatar
Sierron
Posts: 158
Joined: Mon Apr 18, 2016 11:33 pm
Location: Germany

Re: DoLaunchers: McLoader and Brosexec

Post by Sierron » Mon May 30, 2016 2:53 pm

McLoader seems to have an issue with either searching for .dol's on PAL consoles or searching on the memorycard it is on.

I use the Homebros exploit to get into McLoader. My memorycard gets detected and all, but doesn't contain any .dol's according to McLoader - even through that program just booted from it. I need to pull the MC out and in again. So far this happened every time on my PAL console with the homebros exploit and the McLoader on the same card. Haven't tried yet to boot from Slot B on a PAL console with another card containing the exploit. (Will update on this)
The memorycard is a 1023 blocks 3rd party one.

On my japanese cube it works without much issues. I have an official card in Slot A and the above mentioned 1023 blocks card in Slot B.
Haha! I have two BBAs now :P | I also have HomeLand and PSO I&II
suloku
Posts: 50
Joined: Wed Mar 31, 2010 12:55 pm

Re: DoLaunchers: McLoader and Brosexec

Post by suloku » Mon May 30, 2016 4:27 pm

Strange, my setup is PAL, so that shouldn't be an issue. I can't remember in which slots I tested, but it was probably both. In any case I don't have the hardware or the time to re-test, but I don't remember experiencing this issue.

I did have this issue before though some years ago, and workarounded it by trying to mount the memory card, if it fails, all memory card subsystem is reset and the program tries again. I tries to do this 10 times until reporting a mount failure, but when I coded that it always succedded in the second attemp. (https://github.com/suloku/dolaunch/blob ... main.c#L90)
That was many years ago, I just copy pasted the code from gcmm, so maybe swiss has a better way to mount the card. May you check if you have troubles with gcmm or swisss too?

Still, it's strange that it does not happen on a Jap setup.
User avatar
Sierron
Posts: 158
Joined: Mon Apr 18, 2016 11:33 pm
Location: Germany

Re: DoLaunchers: McLoader and Brosexec

Post by Sierron » Mon May 30, 2016 6:32 pm

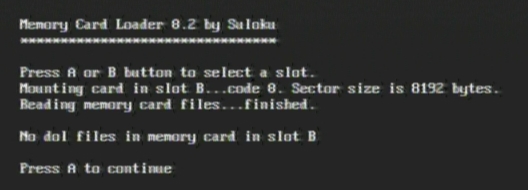

That's the text when it detects the card but can't find things. *

Now with an official 59' Memorycard in Slot A and the 3rd party one in Slot B it detects the card and lists all the files.
I pulled the memorycard in and out multiple times with multiple restarts and was working good.

* It's showing B because first time with the setup above it didn't worked but that was probably only a temp issue.
Attachments
(42.44 KiB) Not downloaded yet
(46.39 KiB) Not downloaded yet
Haha! I have two BBAs now :P | I also have HomeLand and PSO I&II
toxic9
Posts: 54
Joined: Fri Mar 02, 2018 8:40 am

Re: DoLaunchers: McLoader and Brosexec

Post by toxic9 » Sat Jun 23, 2018 5:34 pm

My Gamecubes are PAL version and they can work on Pal 50 and Pal 60 modes.

If I'm launching brosexecconf in PAL60 mode, the picture "autoback.png" fits the entire screen (640x480),

But if I'm launching brosexecconf in PAL50 mode, there is a black bar on the bottom of the screen because the picture doesn't fit the entire screen.
If I change the "autoback.png" resolution to: 640x576 (yes, only the height is changed, so the image is distorced on the PC) then the picture fits the screen and everything is correct.

The problem is then if I launch brosexecconf again in PAL60 mode with the "autoback.png" resolution on 640x576, it crashes!

So, the only solution is I can think of is that brosexecconf somehow detects the running mode (50 or 60Hz) and selects one of the two pictures provided. like: "autoback50.png" and "autoback60.png"
