[WKF] Plug n' Play Diskdrive replacement

Post by _Nold_ » Sun May 06, 2012 11:35 am

Hi,

today i finally finished my Wiikey Fusion Diskdrive replacement... you just need to take out the normal DD and plug this one in and you're ready to rumble :D

The only thing that is missing is a nice switch for pin 29 ^^ but i trust into emu_kidid that he will make swiss autoboot anyway ;-)

So here is the worklog in pics :)


Glued SD- Slot...
download/file.php?mode=view&id=600

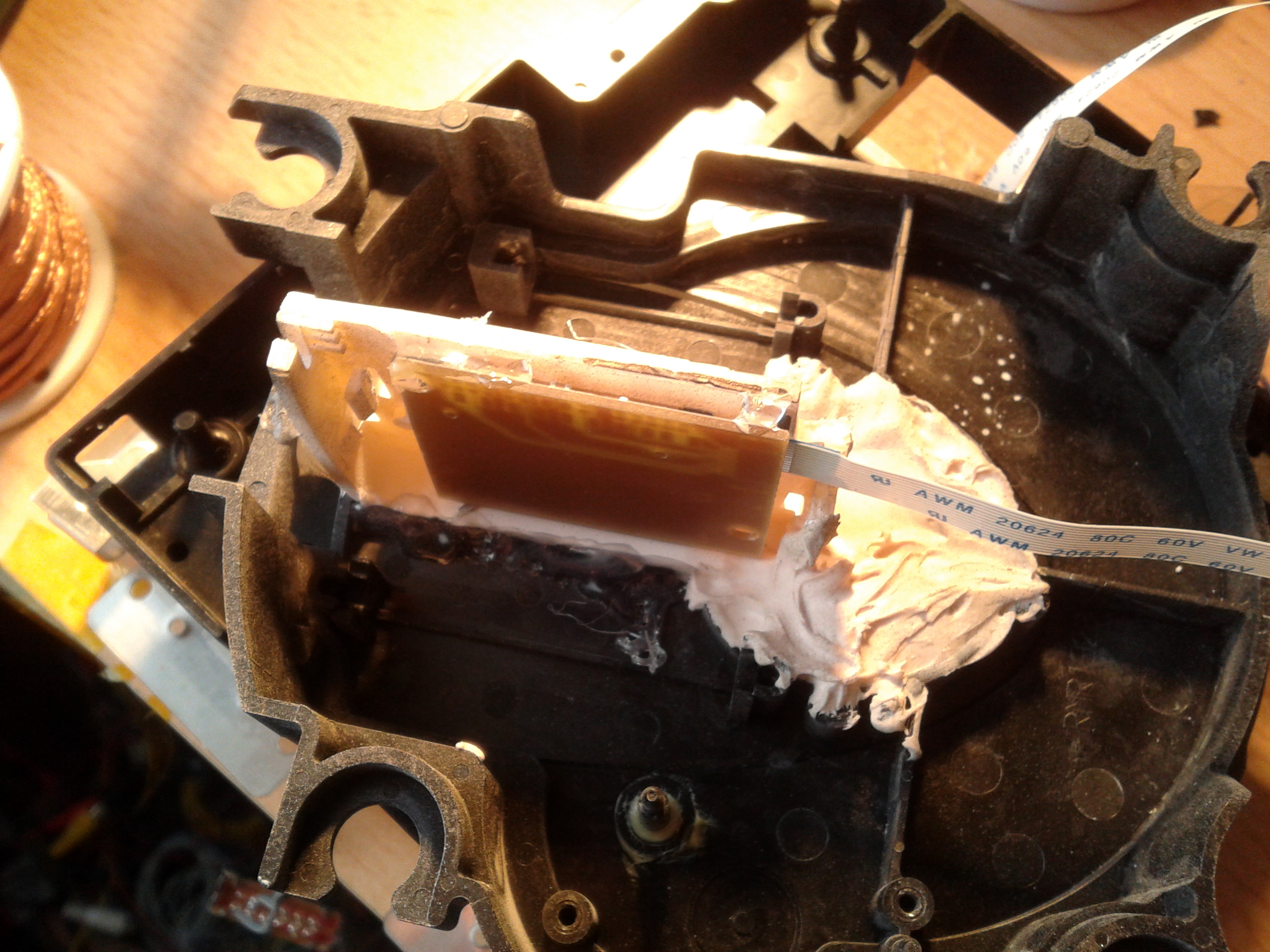

First layer of putty...
download/file.php?mode=view&id=601

Second layer.. (Model filler)
download/file.php?mode=view&id=602

3 layers of primer and 2 layers of color :)
download/file.php?mode=view&id=603

SD-tech stuff glued into it..
download/file.php?mode=view&id=604
Attachments
Then glued the sd-slot into the dd..
(1.43 MiB) Not downloaded yet

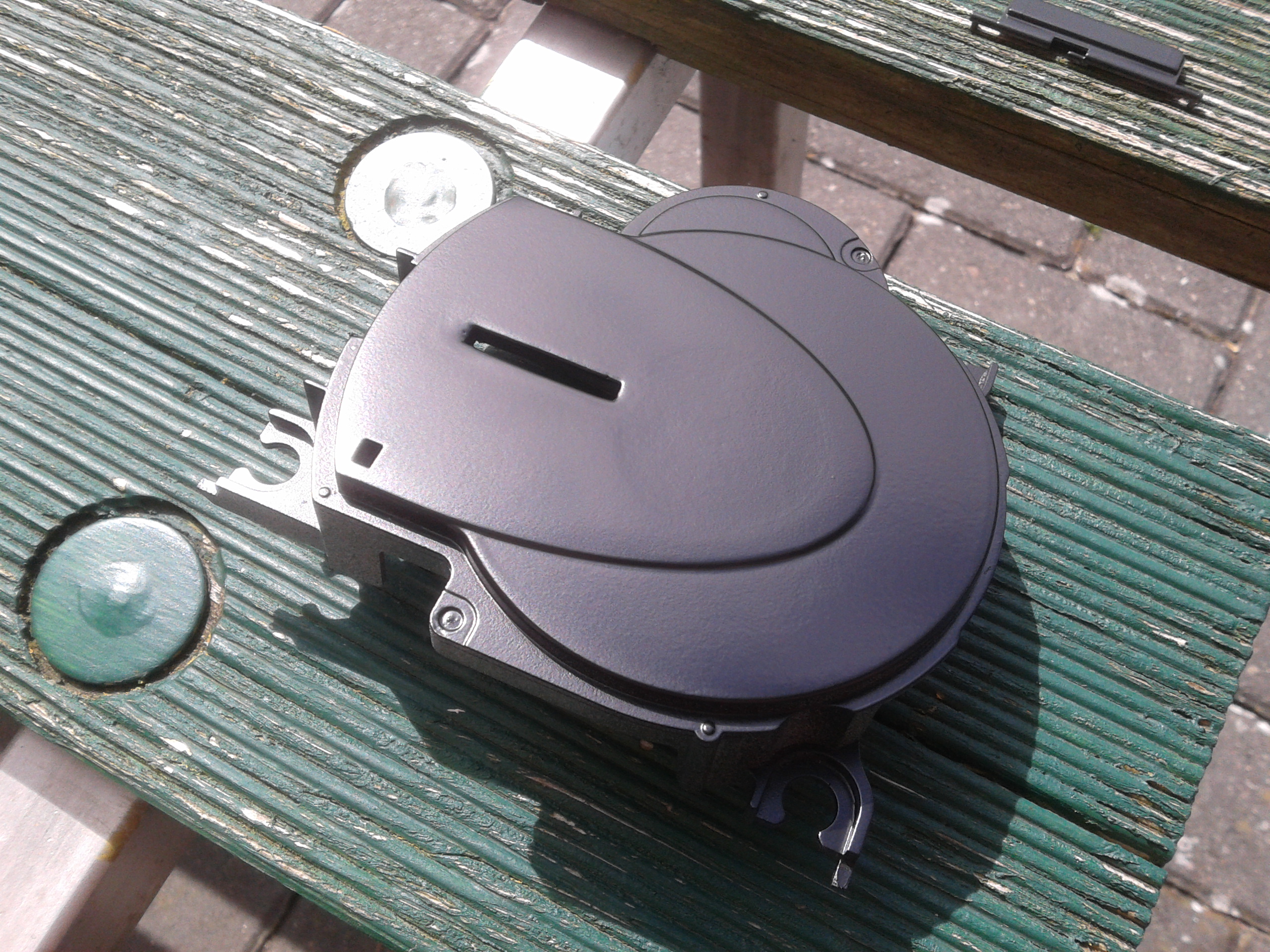

3 layers of primer and 2 layers of color later...
(1.99 MiB) Not downloaded yet
More Putty <.<
(1.76 MiB) Not downloaded yet
Putty :)
(1.88 MiB) Not downloaded yet
SD-Slot glues into DD
(1.23 MiB) Not downloaded yet
Last edited by _Nold_ on Sun May 06, 2012 11:41 am, edited 1 time in total.
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
_Nold_
Posts: 213
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: [WKF] Plug n' Play Diskdrive replacement

Post by _Nold_ » Sun May 06, 2012 11:39 am

Since you can only add 5 attachments -.- ...
Here are the last 2 steps ^^

All the tech stuff..
download/file.php?mode=view&id=605


And done :)
download/file.php?mode=view&id=606
Attachments
Finish!
(1.25 MiB) Not downloaded yet
All the tech stuff...
(1.7 MiB) Not downloaded yet
Last edited by _Nold_ on Sun May 06, 2012 4:11 pm, edited 1 time in total.
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
Ashen
Posts: 994
Joined: Tue Nov 16, 2010 3:08 pm

Re: [WKF] Plug n' Play Diskdrive replacement

Post by Ashen » Sun May 06, 2012 12:22 pm

That looks great man! Nice job. :)
User avatar
emu_kidid
Site Admin
Posts: 4575
Joined: Mon Mar 29, 2010 10:06 am
Location: Australia
Contact:

Re: [WKF] Plug n' Play Diskdrive replacement

Post by emu_kidid » Sun May 06, 2012 12:53 pm

hehehe, really cool :D
kel01
Posts: 149
Joined: Fri Feb 18, 2011 10:45 pm

Re: [WKF] Plug n' Play Diskdrive replacement

Post by kel01 » Sun May 06, 2012 1:44 pm

Nice job, the SD card slot looks very professional 8-)

Bit worried about those solder blobs on the drive board plug connectors though. Have you tested for any bridged connections?
User avatar
_Nold_
Posts: 213
Joined: Mon Nov 14, 2011 7:55 am
Location: Germany
Contact:

Re: [WKF] Plug n' Play Diskdrive replacement

Post by _Nold_ » Sun May 06, 2012 1:46 pm

kel01 wrote:Nice job, the SD card slot looks very professional 8-)

Bit worried about those solder blobs on the drive board plug connectors though. Have you tested for any bridged connections?
lol.. yea it really looks like solder on the pic xD but it's actually just hot-glue :D
| DOL-001 (EUR) Indigo | WKF Plug'n'Play Diskdrive Replacement | BBA |
| Internalised: WaveBird, Keyboard Adapter, MemoryCard, SD-Adapter |

| DOL-001 (EUR) | >> First Gamecube Portable - Worklog
User avatar
liquitt
Posts: 1761
Joined: Thu Apr 01, 2010 5:43 am
Location: neverland
Contact:

Re: [WKF] Plug n' Play Diskdrive replacement

Post by liquitt » Sun May 06, 2012 2:15 pm

Very nice!
please search before you ask - a lot has been discussed already!
(or use google with "site:gc-forever.com *term*")
http://is.gd/MDmZcr

we also have a wiki filled with knowledge
http://is.gd/dX58Rm
User avatar
infact
Posts: 347
Joined: Tue Mar 29, 2011 4:35 am
Location: Germany

Re: [WKF] Plug n' Play Diskdrive replacement

Post by infact » Sun May 06, 2012 4:53 pm


I really like the plug n play part!
