GCP WKF/Worklog

Post by **liquitt** » Mon Mar 11, 2013 4:47 pm

i wasn't talking about money. i was referring to the fact that there is a strictly limited amount of these adapters availible, but good to know that you're fine with wasting them

Bardicus · Post by **Bardicus** » Mon Mar 11, 2013 4:50 pm

pretty sure its not wasted, if it still works?

Bardicus · Post by **Bardicus** » Wed Mar 13, 2013 2:26 pm

Ok, well i hooked the mega drive up last night with wkf and wired all my power and screen and video, all came on good, i kept getting the restart gamecube screen, but sometimes, i didnt get that screen and gamecube seemed to work normal, went to gameplay, and tried hitting my switch for the wkf to boot, it never did, dont quite know what might be wrong???

Uploaded with ImageShack.us

megalomaniac · Post by **megalomaniac** » Wed Mar 13, 2013 2:35 pm

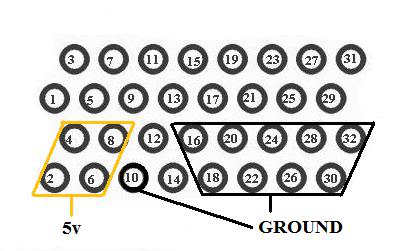

try soldering one of the 5v points from the mobo to the MEGAdrive, might work better if voltage is supplied to the WKF
http://www.gc-forever.com/wiki/images/0 ... ctor-3.jpg

also it could be camera angle, but the ffc cable does not look to be seated in all the way on the MEGAdrive

Bardicus · Post by **Bardicus** » Wed Mar 13, 2013 2:44 pm

Just 1 you think?

Yeah it could be not seated in All the way. It was but I took the photos after I was putting everything away

Bardicus · Post by **Bardicus** » Thu Mar 14, 2013 12:15 am

Got power to wkf now! Two problems. One I have to hold lid switch down for it to go past the opening gc splash screen then when I go to gameplay and press pin 29 switch. Blue led comes on wkf. And stays like that solid blue light. Nothing changes on gameplay screen! Ugh! Also if I release the lid switch gc gives me error to restart and check manual

megalomaniac · Post by **megalomaniac** » Thu Mar 14, 2013 9:33 am

if you have to hold the lid switch then i dont think you are using normally closed switches...
check to make sure the switches you have are the normally closed type...
dont assume you have normally closed switches....
make 100% certain or you will be pulling your hair out for days bacause of an incorrect switch issue...

one more time: check your switches..use a multimeter

Bardicus · Post by **Bardicus** » Thu Mar 14, 2013 12:34 pm

Ok. Well my switch looks exactly like the one in the photo. Has normally closed on left. Normally open I'm middle. Common on right.

megalomaniac · Post by **megalomaniac** » Thu Mar 14, 2013 12:48 pm

Bardicus wrote:Ok. Well my switch looks exactly like the one in the photo. Has normally closed on left. Normally open I'm middle. Common on right.

"looks exactly like" does not mean it is correct, you need to check the switch functionality to confirm its the right type...
think of it like putting gas in your car...the hose for diesel and unleaded might look the same but the type is different...

Bardicus · Post by **Bardicus** » Thu Mar 14, 2013 12:50 pm

ok and what sd switrh is it? a sdpt?

megalomaniac · Post by **megalomaniac** » Thu Mar 14, 2013 1:14 pm

what you are looking for is a normally closed switch. meaning when connected to common and NC, there will be continuous contact between those two points until the switch is pressed and contact will break between the two points...

take your problems with the lid switch you posted...
you posted you need to keep this switch pressed...this is incorrect functionality. you should not need to press that switch unless you want the GC to think the lid is open. instead you have to press it so the GC thinks the lid is closed...
same with the WKF, you have a constant blue led because its not seeing gnd properly...

check you switches...or remove the switches...
twist the ends together for the lid wires so it has constant connection....

for wkf, boot the GC with the two leads connected, break connection and reconnect within one second....you should then see the iso linux image loaded....

Bardicus · Post by **Bardicus** » Thu Mar 14, 2013 11:46 pm

dude i cannot thank you enough for what you have done for me to help me get this running! Wow! it was a grounding prob from the mega board, just played 30 min of metroid prime and all i can say is thank you my brotha!

The hours that you have worked with me and listened to my bs. thanks man!!!

megalomaniac · Post by **megalomaniac** » Fri Mar 15, 2013 11:11 pm

glad you got that working....

also glad to hear the MEGAdrive survived a transplant after the first mobo crapped out on you....getting the optional 2oz copper pcbs really helps the board survive something like this...

Bardicus · Post by **Bardicus** » Sat Mar 16, 2013 1:31 am

Dude I will say that my soldering skills are prestige now. But that mega drive took a beating and works everytime and is a beauty.

The only thing I want is to get Swiss on it and be able to play emulators like snes. But I'm having a terrible time trying to get Swiss loaded

Bardicus · Post by **Bardicus** » Mon Mar 18, 2013 7:55 pm

Damn I've been researching Ashens controller cutting and wiring for ever now and still can't get my head around cutting and wiring it.

Bardicus · Post by **Bardicus** » Fri Mar 22, 2013 1:53 am

What up, So I know I havent really presented a great worklog so far, so here goes.

Gamecube Mobo Dol - 101 Rev C
Dalian 5" Screen
Zn-40 / Zn-45 Case not sure which one will be used yet
Wiikey Fusion Install - Via Mega Drive (Megaloman*)
Using stock 12v Regulator from board

Well To start, all my credit goes to megaloman, he has been about 100% of my support and I couldnt have gotten this far without this guy! He is absolutely the man, and like i said couldn't have done any of this without him! Thanks brotaha

here are some current pictures of what I have so far!

Uploaded with ImageShack.us

YouTube · Post by **emu_kidid** » Fri Apr 12, 2013 9:23 am

looking good, this is the part that I'm the most afraid of doing myself!

Bardicus · Post by **Bardicus** » Fri Apr 12, 2013 11:06 pm

Yeah man its hard! lol been procrastinating! But getting there! Thanks emu kidd for joining my god awful fun! Mega has been a huge help with me, and cant thank him enough! And heres the kicker about the megadrive!!!

My partner in this (were both working on one, learning together) decided that after i installed his megadrive for his portable, that he didnt want to do a portable anymore and just wanted a regular gamecube with the wkf.

He tells me, "can you take that megadrive out of this and put it in this mobo that has all the connectors) as he de soldered all of them for his portable!!! UGHHHH

So, I took the megadrive out of his also and transplanted it into another mobo! Working Wkf after two double installs lol!!!

Here is a question for you guys! Just received my sd gecko, and dont know where to start with it,

My plan is to use it for homebrew and emulators, but dont know how to read it, or get swiss to work, or anything like that! Im reading everything i can and cant figure it out! Please Help!!!

megalomaniac · Post by **megalomaniac** » Sat Apr 13, 2013 12:17 am

for now, upload swiss(pal).iso into wbfs sd card...
yes i said PAL...

then access swiss thru WKF....once the system reboots you need to remove the WBFS sd card from the WKF slot and insert a FAT32 sd card into the slot...you need to do this quickly before swiss appears on screen....
then the contents will be displayed on your FAT32 card....

after you see the contents, you need exit the SD card device and then you can remove the FAT32 sd card from WKF sd slot and insert it into SDGecko....navigate thru swiss to the SD card device and select the appropriate SD slot to see the contents in SD Gecko.....

yes, this instructions sound crazy, but this is what you need to do...
eventually you may choose to install swiss on WKF flash which will simplify everything....
re-read the instructions above and try it a few times until you get it right....

Bardicus · Post by **Bardicus** » Sat Apr 13, 2013 12:40 am

Well when i do that it loads and just says init wiikey

megalomaniac · Post by **megalomaniac** » Sat Apr 13, 2013 12:49 am

you need to swap the SD cards after the GC resets back to the bootup logo, and before swiss is actually loaded...
you have about a 4 or 5 second window to swap it correctly...

Bardicus · Post by **Bardicus** » Sat Apr 13, 2013 12:57 am

Do I need to have something on the fat32 card? Or?

megalomaniac · Post by **megalomaniac** » Sat Apr 13, 2013 1:02 am

if nothing is on the card then there will be no contents to display...
if do you need anything on the card for it to work properly? no...

just keep trying til you figure out the process...

Bardicus · Post by **Bardicus** » Sat Apr 13, 2013 8:31 am

Alright! Got it working! Then tried to flash my wkf with swiss, now everytime i try to activate my wkf. Frozen GC!!! Ugh Stupid jager, and beer! What a night! Now its goin downhill! Super bummer

Bardicus · Post by **Bardicus** » Wed May 01, 2013 7:09 pm

Boom!!! All done! First portable is complete! What a great addition to my game systems the next one will only be better!
