Items of Potential use for building a Portable Gamecube

Post by Redmagnusx » Fri Aug 15, 2014 12:53 am

Hey guys. On a shopping trip today, I was able to find a couple of interesting items for a very cheap price that may come in handy for building a portable Gamecube.

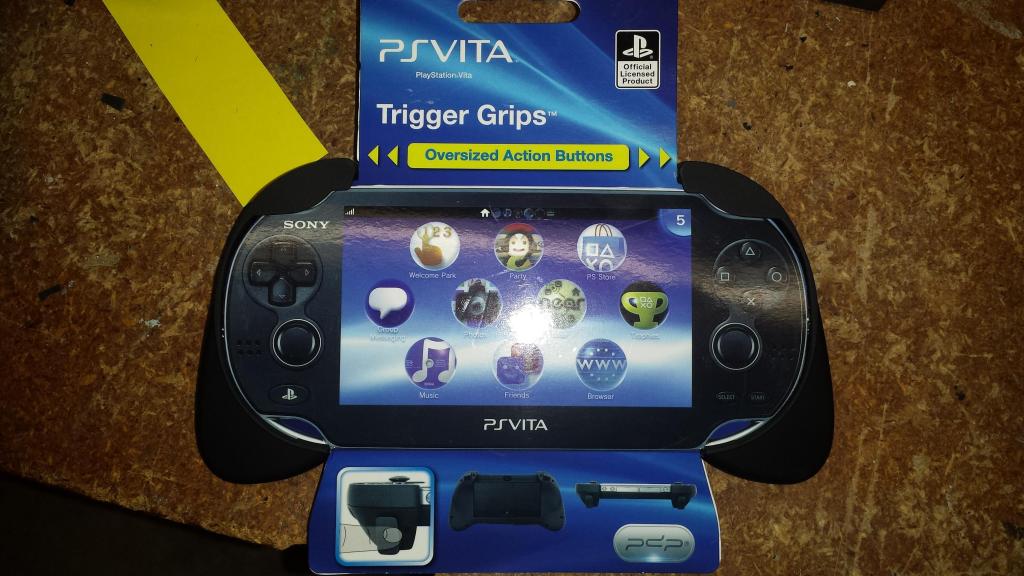

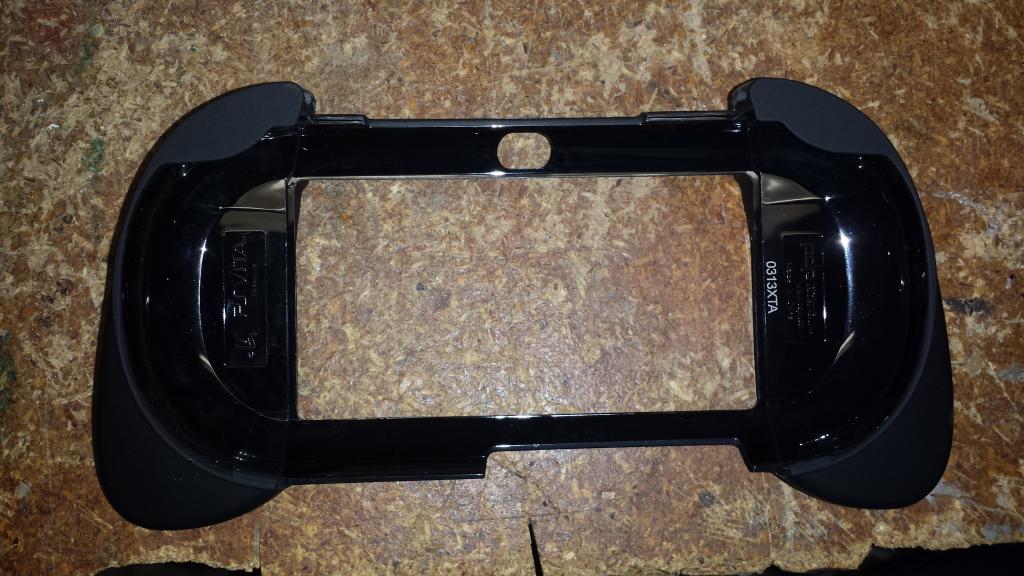

The first Item are these "Trigger Grips" for the Playstation Vita. They are currently on clearance at Best Buy for only $6 and I believe that they have a lot of potential for use as the L and R Buttons on our portables. Here are a few pictures of it.

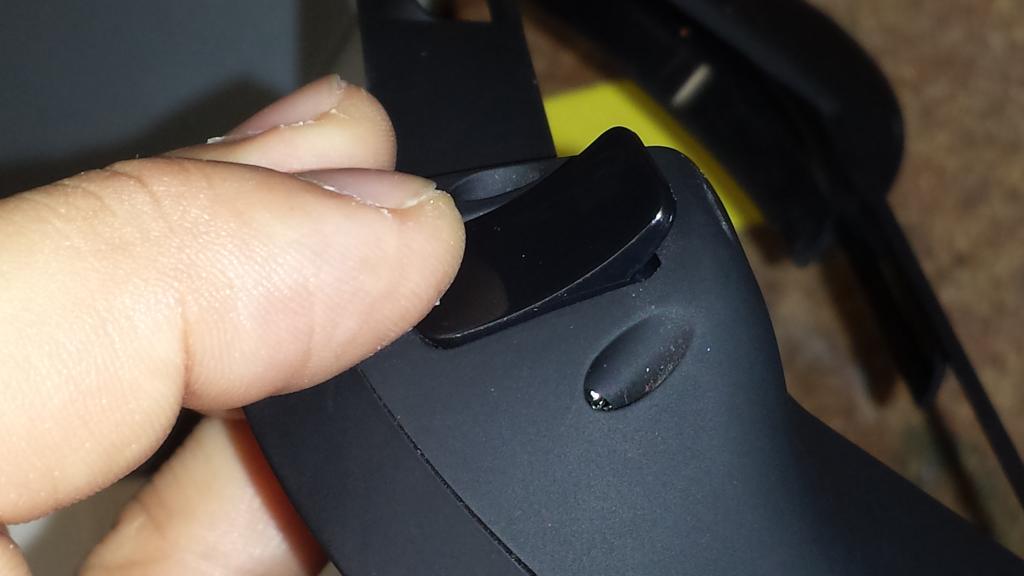

As you can see, the triggers have quite a bit of travel to them. They also have a nice springiness to them and the contour to the finger very nicely.

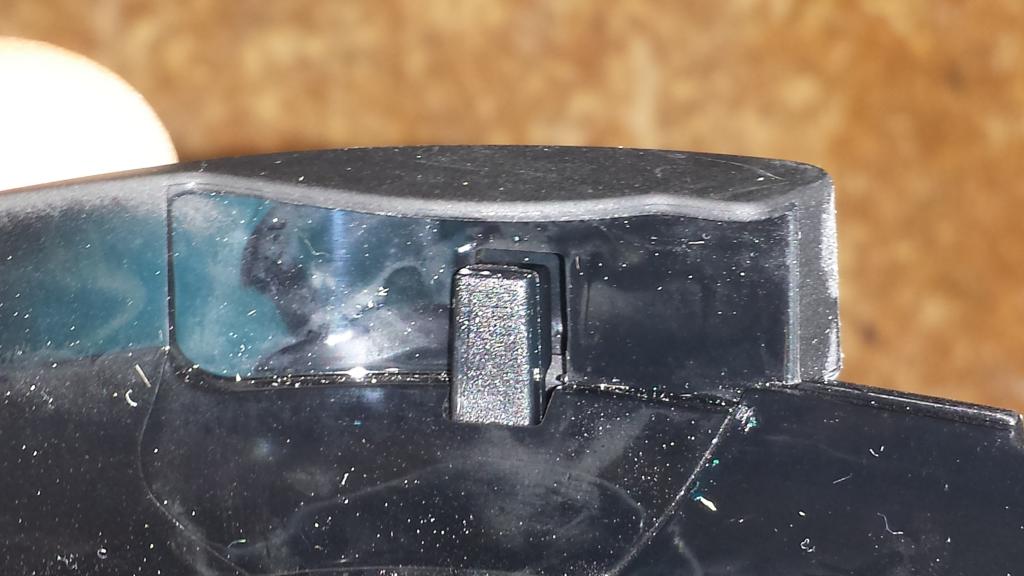

From these photos you can see a flat piece that moves as the triggers are pressed. To me, it seems like it will be a very easy task setting up a dual tact mod mounted behind these triggers.

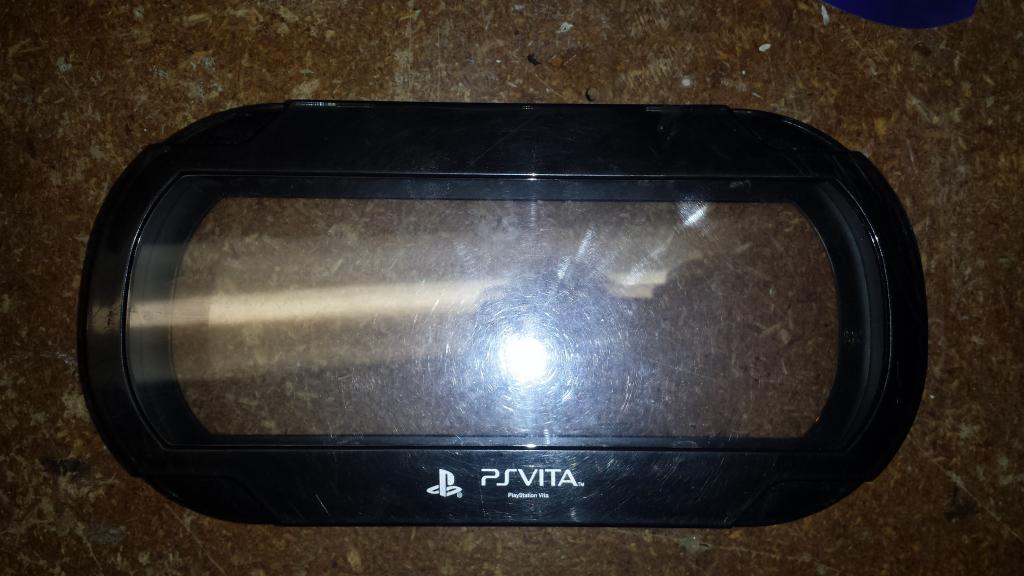

The second item of interest is the PS Vita Case. I'm not sure if anyone has ever tried using this before, but it is a perfect size for a portable and a Medium Cut Revision A/B Motherboard fits in it with room to spare. The best part is that it only costs about $8 used at Gamestop. The dimensions are 20cm (L) 10cm (W) 3.5cm (D)

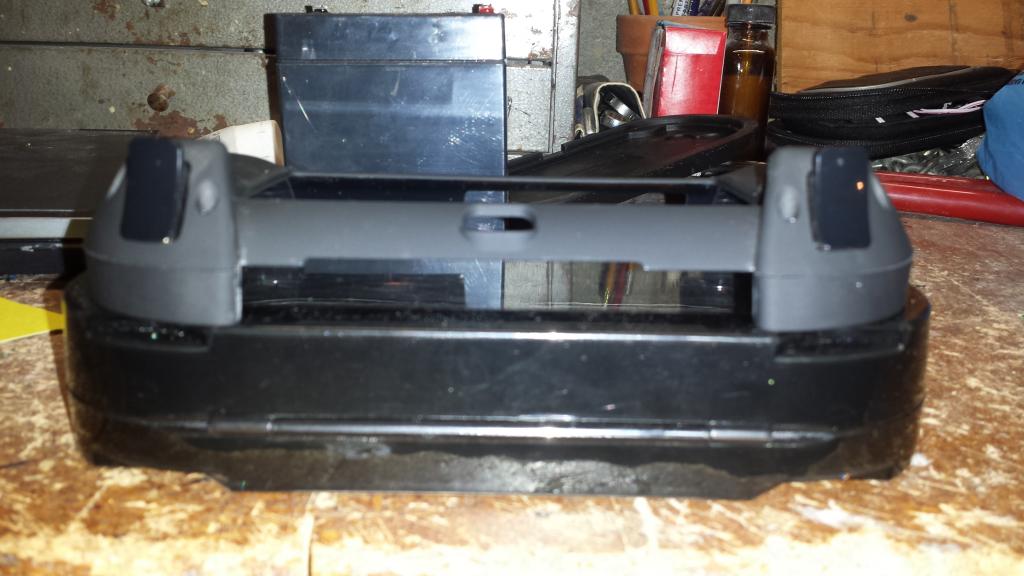

The best part is that since they're designed for the same handheld, the pieces are close enough in size that Franken Casing them together shouldn't be too difficult.


I hope that someone finds these useful in their endeavors. I for one am going to try my best to use these for my next portable.
Attachments
(71.9 KiB) Not downloaded yet
(41.07 KiB) Not downloaded yet
(69.18 KiB) Not downloaded yet
(53.12 KiB) Not downloaded yet
(79.55 KiB) Not downloaded yet
(93.62 KiB) Not downloaded yet
(104.88 KiB) Not downloaded yet
(73.87 KiB) Not downloaded yet
(134.93 KiB) Not downloaded yet
User avatar
megalomaniac
Posts: 2480
Joined: Sun Aug 21, 2011 5:33 am
Location: Drunk in Texas
Contact:

Re: Items of Potential use for building a Portable Gamecube

Post by megalomaniac » Fri Aug 15, 2014 3:02 am

that pic with the mainboard....
there is no room for the FFC cable....
maybe MEGAdrive V6 would be better choice in this application....plus you can trim the board a bit more with v6...



unless you are going to extend the size of the case??
emu_kidid wrote: beer is like WD40 for megalomaniac's brain, gets the gears moving
>>> BadAssConsoles.com <<<

Image Image Image
Redmagnusx
Posts: 59
Joined: Thu Mar 28, 2013 3:07 am

Re: Items of Potential use for building a Portable Gamecube

Post by Redmagnusx » Fri Aug 15, 2014 3:15 am

Oh, I was planning on using a megadrive v6. That board is from another project. I was only using it for reference.
