kennyycc · Post by **kennyycc** » Tue Aug 02, 2011 4:37 pm

This initial stage tutorial are made only for Emu-Kidid who on testing on my adaptor.

Soldered it.

Assembled the mainboard top metal casing.

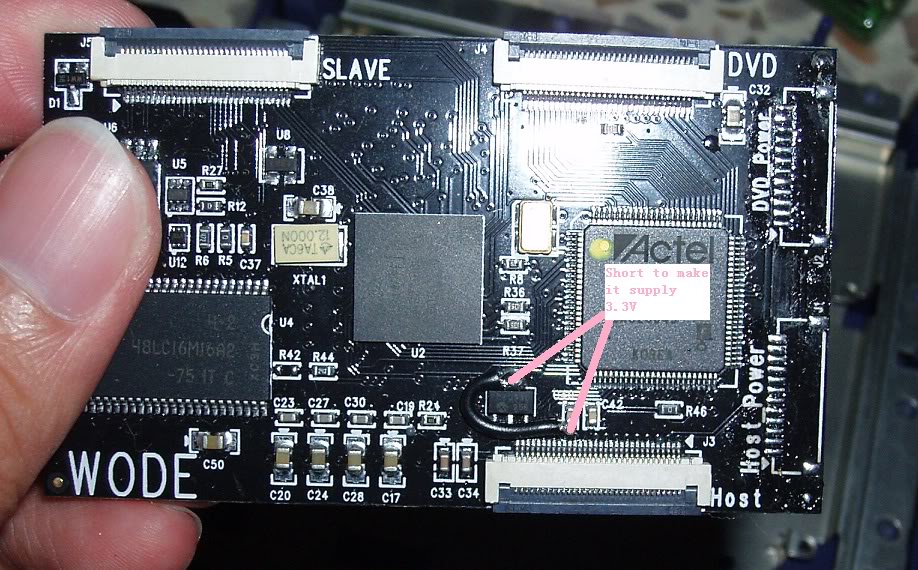

Conenct Slave FPC to WODE Slave Board.
Connect 5V and GND to Slave Board.
Turn ON.

infact · Post by **infact** » Tue Aug 02, 2011 5:54 pm

just awesome!

Ashen · Post by **Ashen** » Tue Aug 02, 2011 6:06 pm

That is really just a thing of beauty. Very nice work man.

yamaharacer · Post by **yamaharacer** » Tue Aug 02, 2011 6:40 pm

wow. realy great work.

Post by **liquitt** » Tue Aug 02, 2011 8:10 pm

oh. my. gosh.

WANT

steffen · Post by **steffen** » Tue Aug 02, 2011 8:50 pm

Will buy one for sure!

LOCtronicz · Post by **LOCtronicz** » Tue Aug 02, 2011 9:14 pm

Fantastic!!! Very nicely designed pcb. I'll be buying a couple from you if the price is right. When are you going to produce them?

kel01 · Post by **kel01** » Tue Aug 02, 2011 10:15 pm

Great work kennyycc. Really hope you do make some more, I would definitely have a couple.

YouTube · Post by **emu_kidid** » Wed Aug 03, 2011 2:45 am

I'll install a WODE & then a Wiikey Fusion using this and take pics shortly (within the next week)

Post by **liquitt** » Wed Aug 03, 2011 5:22 am

so this will work with a wii drive, too?

infact · Post by **infact** » Wed Aug 03, 2011 11:40 am

liquitt wrote:so this will work with a wii drive, too?

of course

kel01 · Post by **kel01** » Tue Aug 23, 2011 9:05 pm

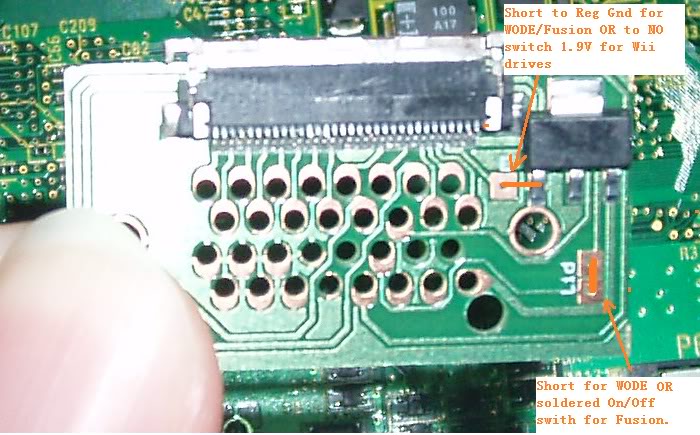

Could anyone please explain to me in more detail what the shorting wire on the main wode board is for?

@emu_kidid: Any more news on when or if these adapters will be available? I've got everything I need now to install the Wode and was wondering if it's worth waiting for one of these adapters or to just try and solder directley to the FPC cable.

YouTube · Post by **emu_kidid** » Tue Aug 23, 2011 10:41 pm

going to try installing one of these today if I can get the energy to do it.

sm4rty · Post by **sm4rty** » Wed Aug 24, 2011 12:39 pm

need need need

if you produce them, let me know.

ps @ kennyycc: is the mainboard arrived?
should be there

kennyycc · Post by **kennyycc** » Thu Sep 08, 2011 2:52 am

ya sm4rty...Received...the board working. Thanks alot.

YouTube · Post by **emu_kidid** » Thu Sep 08, 2011 3:47 am

kennyycc, I have half installed the board, don't worry I haven't disappeared, just been very busy

Will update on progress in approx 30hrs

Titi366 · Post by **Titi366** » Sat Oct 08, 2011 7:53 am

Hello,

I wish you order 6 pieces
What is the process to order?

wmacw · Post by **wmacw** » Thu Dec 01, 2011 3:06 pm

Where i can buy one?

YouTube · Post by **emu_kidid** » Tue Jan 31, 2012 2:05 am

So I finally installed it, and I'm having issues with getting a Wiikey Fusion working. It blinks and blinks but I get the "Error the disc could not be read" message. All my switches are correct too. No difference with a 1.9v/GND switch. I noticed when I put the lid switch to closed and I haven't hit the GND/1.9v switch I get "Reading disc" flashing rapidly back to "Please insert a Gamecube Disc".

I've double checked all my points and they're solid, only thing I haven't checked is if the pin mappings are correct on the board itself. Also, the on board 3.3v wasn't very reliable so I wired it up directly. Neat little adapter if I could get it working right!

Post by **liquitt** » Tue Jan 31, 2012 10:45 am

8. Sept 2011 to 31. Jan 2012 in 30 hrs - nice!

kel01 · Post by **kel01** » Tue Jan 31, 2012 11:43 am

liquitt wrote:8. Sept 2011 to 31. Jan 2012 in 30 hrs - nice!

/me thinks emu_kidid has coded a time travel app for the GC and is not telling us

Post by **liquitt** » Tue Jan 31, 2012 12:02 pm

_Nold_ · Post by **_Nold_** » Tue Jan 31, 2012 6:37 pm

Awesome work! Love it

sakamoto · Post by **sakamoto** » Wed Feb 01, 2012 10:27 pm

i want one

when is this going into production?

megalomaniac · Post by **megalomaniac** » Wed Feb 01, 2012 11:14 pm

There was discussion on IRC about making some of these boards but they do require the user to solder very precise points on the mainboard. Further discussion can be found here for an easier plug and play adapter alternative which "might" be available soon. Notice the word "might"

http://www.gc-forever.com/forums/viewto ... f=26&t=838
