Wiikey Fusion

[megalomaniac]

for more information see wiki page http://www.gc-forever.com/wiki/index.ph ... key_Fusion

Firmware releases


Wiikey Fusion 1.0 Initial Release

DVD Direct Boot Supported
GC WBFS Menu NOT Supported



Wiikey Fusion 1.1
Fixes one bug causing DVD games to loop back to the system menu before starting, and another bug whereby SD cards are not properly detected and the last game played from DVD show up in disc channel instead of the Wiikey Fusion menu.

DVD Direct Boot Supported
GC WBFS Menu NOT Supported

wkf_upd_1_1.iso.rar

(724.32 KiB) Downloaded 1557 times

Wiikey Fusion 1.2
This update fixes a few bugs that some users have been experiencing: namely a bug causing some DVDs not to eject when the eject button is pressed and another bug causing the flash update to fail/freeze if the SW3 dip switch is accidentally in the OFF position. This update also makes some improvements to the alignment of the selection menu cursor.

DVD Direct Boot Supported
GC WBFS Menu NOT Supported

wkf_upd_1_2.iso.rar

(733.01 KiB) Downloaded 1479 times

Wiikey Fusion 1.3
A minor update to allow full support for GC images to SD cards formatted with the WBFS filesystem.

DVD Direct Boot Supported
GC WBFS Menu Supported

wkf_upd_1_3.iso.rar

(736.71 KiB) Downloaded 1539 times

Wiikey Fusion 1.4
Partially fixes an issue that causes the Mii/Photo channel to crash on some Wiis when no SD card is present. With this update, all Wiis should now work as long as SD card or DVD is present. This will be completely resolved in the upcoming 1.5 firmware update. Various other minor bugfixes and improvements have been included in this release

DVD Direct Boot NOT Supported
GC WBFS Menu Supported

wkf_upd_1_4.iso.rar

(735.11 KiB) Downloaded 1479 times

Wiikey Fusion 1.5
This update should fix the problem loading DVD backups.

DVD Direct Boot NOT Supported
GC WBFS Menu Supported

wkf_upd_1_5.iso.rar

(728.46 KiB) Downloaded 1960 times

[megalomaniac]

Wiikey Fusion 1.2 Recovery
To help users who have had a bad flash while upgrading their Wiikey Fusion (ie: if the power went out in the middle of updating). This update provides the same firmware update as the regular Wiikey Fusion Update v1.2 released on 8th June, but it runs in recovery mode. Use this only if you are unable to apply the regular v1.2 update. Be sure to read the readme.txt instructions carefully before installing, as it requires more steps than a regular Wiikey Fusion update.

Flash Recovery
See included readme.txt for further instructions

wkf_recover_1_2.iso.rar

restore iso + readme.txt

(733.2 KiB) Downloaded 1765 times

WBFS MANAGER 4.0
Gamecube ISO support
posted by emu_kidid
64bit x64
32bit x86:




WKF Original Firmware Menus for Swiss on Flash
Boot into Original WKF menu from swiss on flash
youtube video
WKF menu requires WBFS formatted card so you need to do a card swap after loading
Load titles from WBFS.
use to change / save WKF configuration menu settings
cannot mix and match firmware and menu or you will receive a DRE

WKF_Menus.zip

WKF original menus

(1.02 MiB) Downloaded 1632 times

[megalomaniac]

WBFS manager quirks and bugs...

im not sure if anyone else has posted this info before, but i had a chance to play with WKF firmware 1.0
as indicated there is no WBFS Gamecube Menu support..this means GC titles will not be displayed in the WKF menu, but can still be played if you press right on the d-pad under the "mounting" entry displayed in the WKF menu...
while it is not ideal to use version 1.0 because you will never be able to select which title you want to load, i noticed something very odd....


when i tried to load a title listed as "mounting"...Swiss was the title loaded
looking in WBFS manager, swiss was not listed as a title...
so how can Swiss be loading??

time to start troubleshooting:

i deleted all titles listed in WBFS manager except for 1 title "robotech"
then after booting into the WKF menu and loading the entry "mounting" (as shown in pic above)....swiss was still loaded...
WTF??


i formatted the card using WBFS FORMAT button and transfered robotech to the sd card as the only title on the card...
then after booting into the WKF menu and loading the entry "mounting"....robotech was finally loaded...


on to more troubleshooting:

with the card in WBFS manager, i deleted robotech so no entries were listed in WBFS manager....

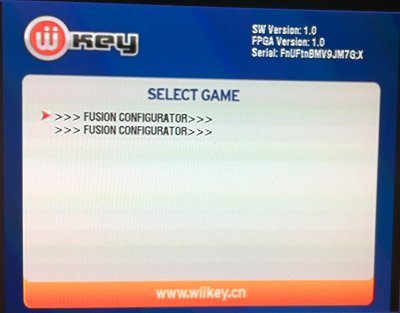

then after booting into the WKF menu i saw two entries for "fusion configuration"...i hit d-pad right and i entered into the fusion configuration options....i went down to save, hit d-pad right to save. then d-pad right again and robotech was loaded...




...and some more troubleshooting

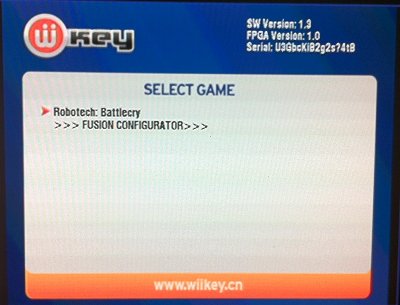

i performed the exact same tests in firmware WKF 1.3, robotech is properly displayed in the WKF menu



and same as before:
with the card in WBFS manager, i deleted robotech so no entries were listed in WBFS manager....

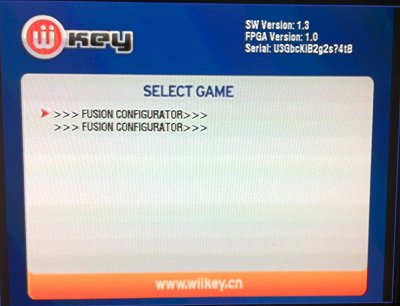

then after booting into the WKF menu i saw two entries for "fusion configuration"...i hit d-pad right and i entered into the fusion configuration options....i went down to save, hit d-pad right to save. then d-pad right again and robotech was loaded...





conclusion
using WBFS manager to "delete" titles does not remove the title from the SD card, it seems to only "unlist" the entry...but the data is still on the card...only formatting the card will remove titles

[mautheus]

Well, this seems to be a bug in WBFS Manager. It would be nice now that the staff makes programming create a patch or a new version of the program to correct the problem. Great tests.

[emu_kidid]

WBFS 4.0 64bit x64:

wbfs_manager_4_0_x64.rar

(3.37 MiB) Downloaded 2529 times

WBFS 4.0 32bit x86:

WBFS Manager 4.0x86.zip

(3.99 MiB) Downloaded 1798 times

[megalomaniac]

second post updated, added WKF original menus for use with swiss on flash

[emu_kidid]

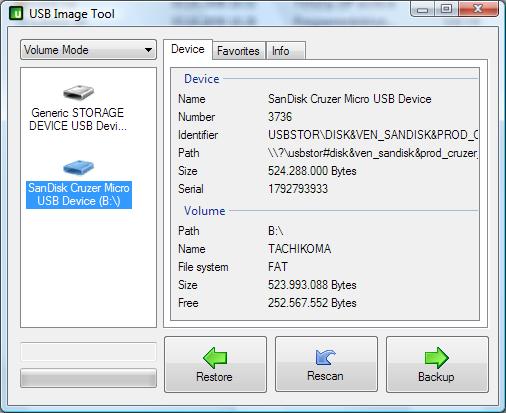

Use this tool to write the WKF 1.2 recovery ISO raw to an SD card if required on windows:
http://www.alexpage.de/usb-image-tool/

Requires 3.5 .NET framework

Mirror:

usbit.zip

(251.81 KiB) Downloaded 1285 times

[vonfnas]

So, I got my Wiikey Fusion yesterday.

I bought it at a local shop, and they told me that it's a legit WiiKey Fusion-chip, and not a clone.
Not that it matters, but out of curiosity, is there a way to tell if it's legit?
