Wiikey fusion GC's - post your pictures!

[Hugo_Peters]

Here's mine!

Zenl0c did the flactcable for me!

any specs for the screen you are willing to share? that looks pretty neat...

It's a screen from Dalian Good Display.
I uploaded the datasheet for you:http://djek.nl/Downloads/PDF/GTI050TN22.pdf
Here is the link to the screen: http://www.aliexpress.com/product-gs/30 ... ike_detail

[emu_kidid]

holy crap dude, just realized you're using component output - must be some sharp picture on there!

[Hugo_Peters]

holy crap dude, just realized you're using component output - must be some sharp picture on there!

Yeah it's looking great!
But I stopped my portable GameCube project because I haven't got enough money to build one, so I decided to put my GC back together with a WKF and a SDGecko Slot B,
and remove the Disc Drive.
Will post some pics later.

~Thinking of selling this screen...~

[Hells Guardian]

I'm now the owner of this GC as done by ashen. It plays like a dream!

[demonicfox666]

im very jealous ^^ :O

[Hells Guardian]

Don't blame you it's a very very nice GC! I absolutely love it.

[Cubdax]

My gamecube with Wiikey Fusion

















I bought FFC Adaptor here: http://cgi.ebay.es/ws/eBayISAPI.dll?Vie ... K:MEWNX:IT Seller sends from Latvia.

[liquitt]

i somehow like the way you crammed it all in there. you open the cube and jsut see a big mess

[Ashen]

Very nice man! That is one HUGE FFC adapter, nice find!

[yamaharacer]

here is mine. completly plug and play. you only need to use 12V directly from the power switch. I have prepared the whole thing completly renewable. that means does any part will get destroid I can easily remove everything and use new parts. I also dont wanted to use a external switch for ejecting the isos. so I have just put a switch unter the reset button. when I press the button the gamecube resets and the iso will get ejected.
It was realy difficult to get the high of where the wode display needs to be cause of the Plexiglas I used in the inside of the cover. but finaly I solved this problem by cutting some distance pins to the right high.

[liquitt]

good job there!

[Ashen]

Very nice Yamaharacer! I love the white color of your GC case.

[liquitt]

Very nice Yamaharacer! I love the white color of your GC case.

yeah me too, is it the original pearl white one?

[yamaharacer]

yeah its the original case of a revision c cube.

[Sep_michi]

Hi

@Cubdax
woah and I thought my adapter is huge
I used this one
http://imagr.eu/up/4e4036613dd644_so.png

will post images when my "cube" is finished ... I slim it down a litle bit

[sm4rty]

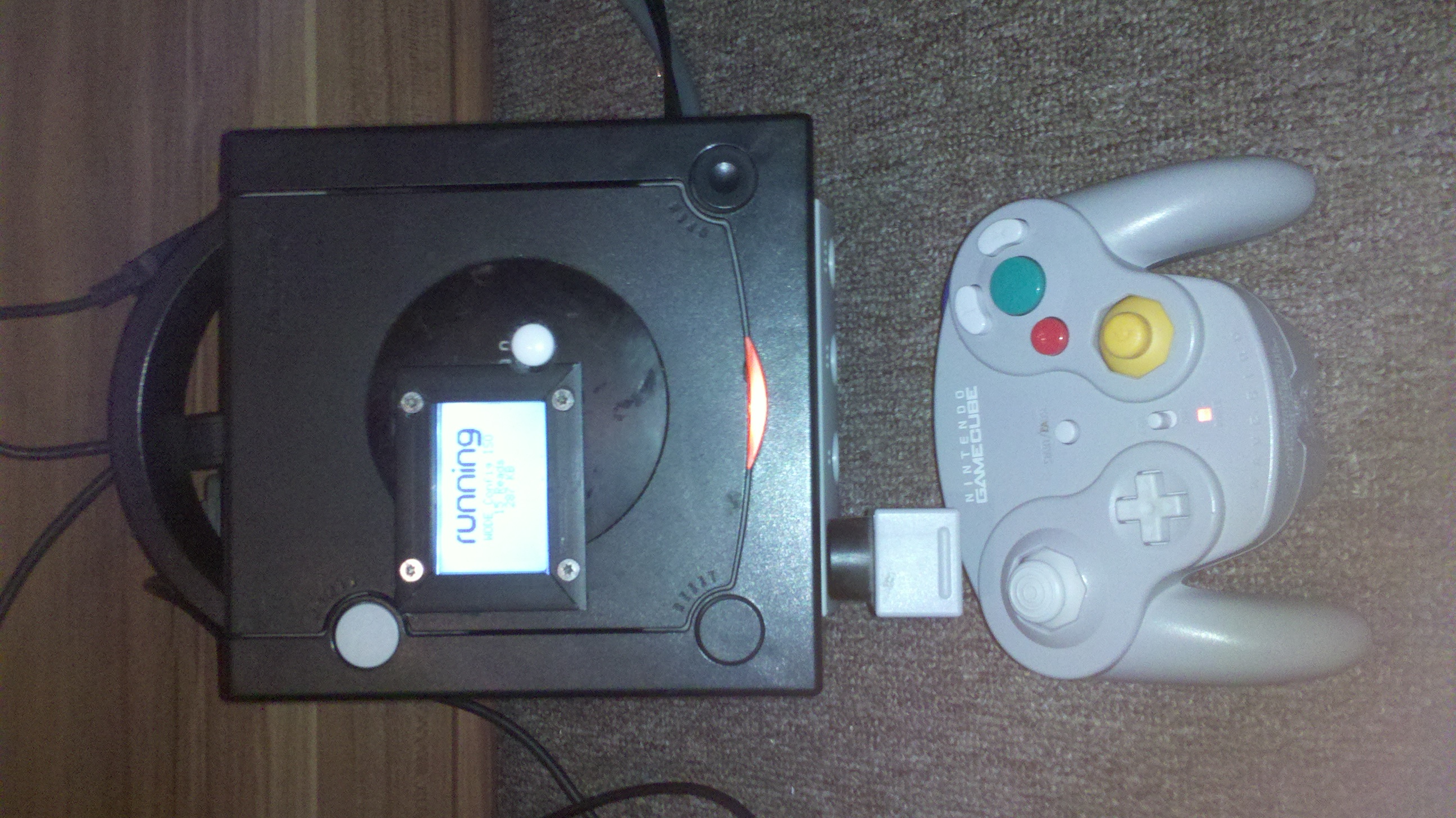

My ugly mod of a cube with wode

[Ashen]

That looks pretty nice man, I really need to get my WODE installed finally ><;

[hailrazer]

I had an hour or two last night and a spare Wiikey Fusion. And I had just received a Gamecube Component Cable.

So I decided to go ahead and make a ED (almost HD) Gamecube Fusion :

I removed the DD drive and soldered in the Fusion. Then I removed the guts from the top half of the DD drive and super glued it back into the Gamecube.
Then I re-moved the Fusion sd slot and mounted it in the hole where the laser normally moves back and forth. I just took a small piece of plastic and heated it with a heat gun till I could bend it. Then super glued the sd-slot to it and then to the Gamecube.

Results:

[Ashen]

That's a pretty cool idea Hail, Makes it look nearly stock. Welcome to GCForever.

[emu_kidid]

Yeah, I've thought about doing similar too. I like where you've put the switch too

[hailrazer]

Thanks guys.

It looks better than the pics show. Dang pics make the thing looked scratched to pieces.

I was going to put a Knight Rider led bar in the front but it's so bright it gets annoying. Maybe I'll put it inside and have a see-through top.

[hailrazer]

Added the Knight Rider Led and did a quick video :

http://www.youtube.com/watch?v=Z0VY-wJc77A

[emu_kidid]

looking pretty good there - given me motivation for my next wiikey fusion GC

[megalomaniac]

those LEDs are really bright...
good job

[pr0ton]

Well, finally installed a Wiikey Fusion first time and to my surprise, with success! Placed it beneath the motherboard, because there are easy solder points there:
